QJ 10''Wall mount rack

Standards:
●Comply with ANSI/EIA RS-310-D、IEC297-2、DIN41494;PART1、DIN41494;PART7, ETSI standard.

Features:
●Exquisite design with precise dimensions and craftsmanship.
●Easy installation.
●Closable top/bottom cable entry openings.
●Removable side panels and front/back doors for operation and watching.
●Doors can be opened from the left or right.

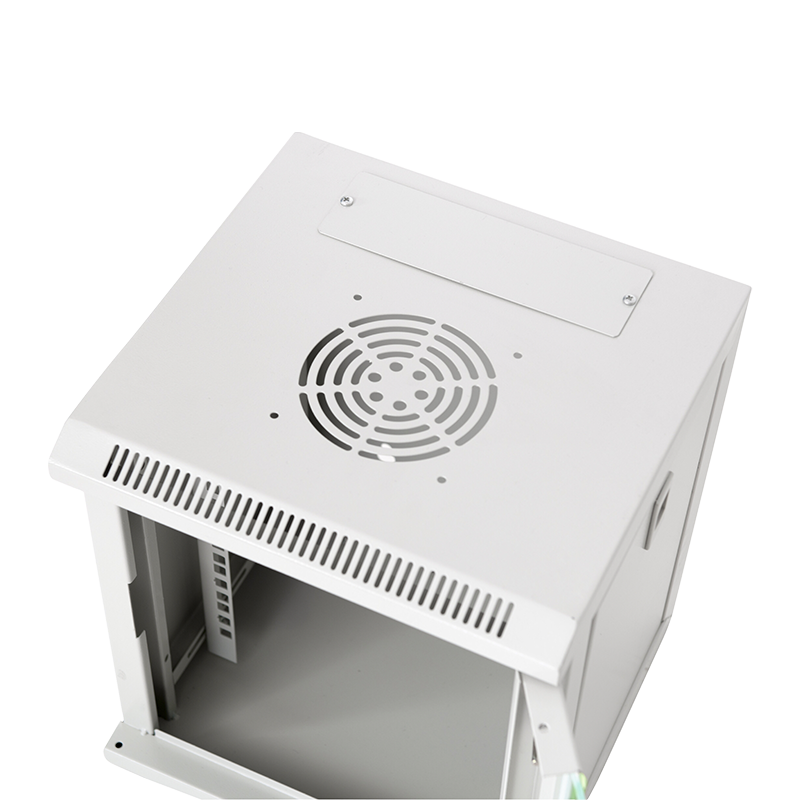

●Top cover is available to fans.

+86-574-63661713/+86-574-63666728 Contact Us

Description
Customization Process
Feedback

Main material:
●Cold-rolled steel;
●Thickness: mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm.

Surface treatment:
●Degreasing, pickling, phosphating, laundering, powder coating.
●Doors can be opened from the left or right.

Protection class:
●IP20

Load capacity:
●Static load:60KG

Standard Configurations
items	names	quantity	unit	materials	surface treatment	remarks
1	frames	1	pc	1.0mm cold-rolled steel	powder coating	---
2	front doors	1	pc	4mm tempered glasses/1.2mm cold-rolled steel	powder coating	---
3	side panels	2	pc	1.0mm cold-rolled steel	powder coating	---
4	profile rails	4	pc	1.5mm cold-rolled steel	powder coating	---
5	L-shaped bars	2	pc	1.2mm cold-rolled steel	powder coating	---
6	cage nuts	20	pc	---	---	---

Specifications
types	capacity	width	depth	height	packing dimensions			volumes
		width	depth	height	length	width	height	volumes
		(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(m3)
QC3306-f☆	6U	312	300	350	330	315	365	0.379
QC3309-f☆	8U	312	300	485	330	315	500	0.519
QC3312-f☆	9U	312	300	615	330	315	630	0.654


●Side	●adjustable front/back profile rails	/

1. Drawings or specifications	We get the drawings or specifications from customers.
2. Drawings Confirmation	We will draw the 3D drawings according to the customers' 2D drawings or specifications, and send the 3D drawings to customers for confirmation.
3. Quotation	We will quote after getting the customers' confirmation, or quote directly according to customers' 3D drawings.
4. Making Samples(not standard)	Standard products do not need samples, non-standardized samples will be made and sent to the customer for confirmation
5. Mass Producing	We will produce the products after getting the customers' confirmation and orders.
6. Inspection	We will inspect the products by our inspectors or ask the customers to inspect together with us when finished.
7. Shipment	We will ship the goods to the customers after getting the inspection result ok and the customers' confirmation.
