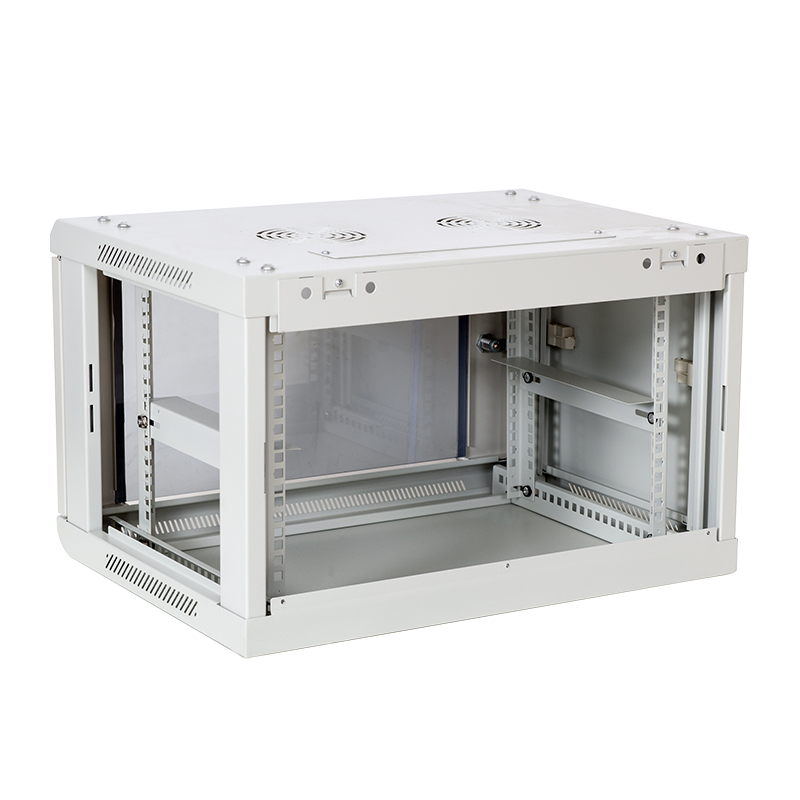

QC-L Wall mount rack

Standards:
●Comply with ANSI/EIA RS-310-D、IEC297-2、DIN41494;PART1、DIN41494;PART7, ETSI standard.

Features:
●Exquisite design with precise dimensions and craftsmanship;
●Easy installation;
●Optional locks for side panels;
●Closable top/bottom cable entry openings;
●Removable side panels and front/back doors for operation and watching;
●Doors can be opened from the left or right;
●Top cover is available to fans.

+86-574-63661713/+86-574-63666728 Contact Us

Description
Customization Process
Feedback

Main material:
●Cold-rolled steel;
●Thickness: mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm.

Surface treatment:
●Degreasing, pickling, phosphating, laundering, powder coating;
●Doors can be opened from the left or right;

Protection class:
●IP20

Load capacity:
●Static load:60KG

Standard Configurations
item	name	quantity	unit	materials	surface treatment	remarks

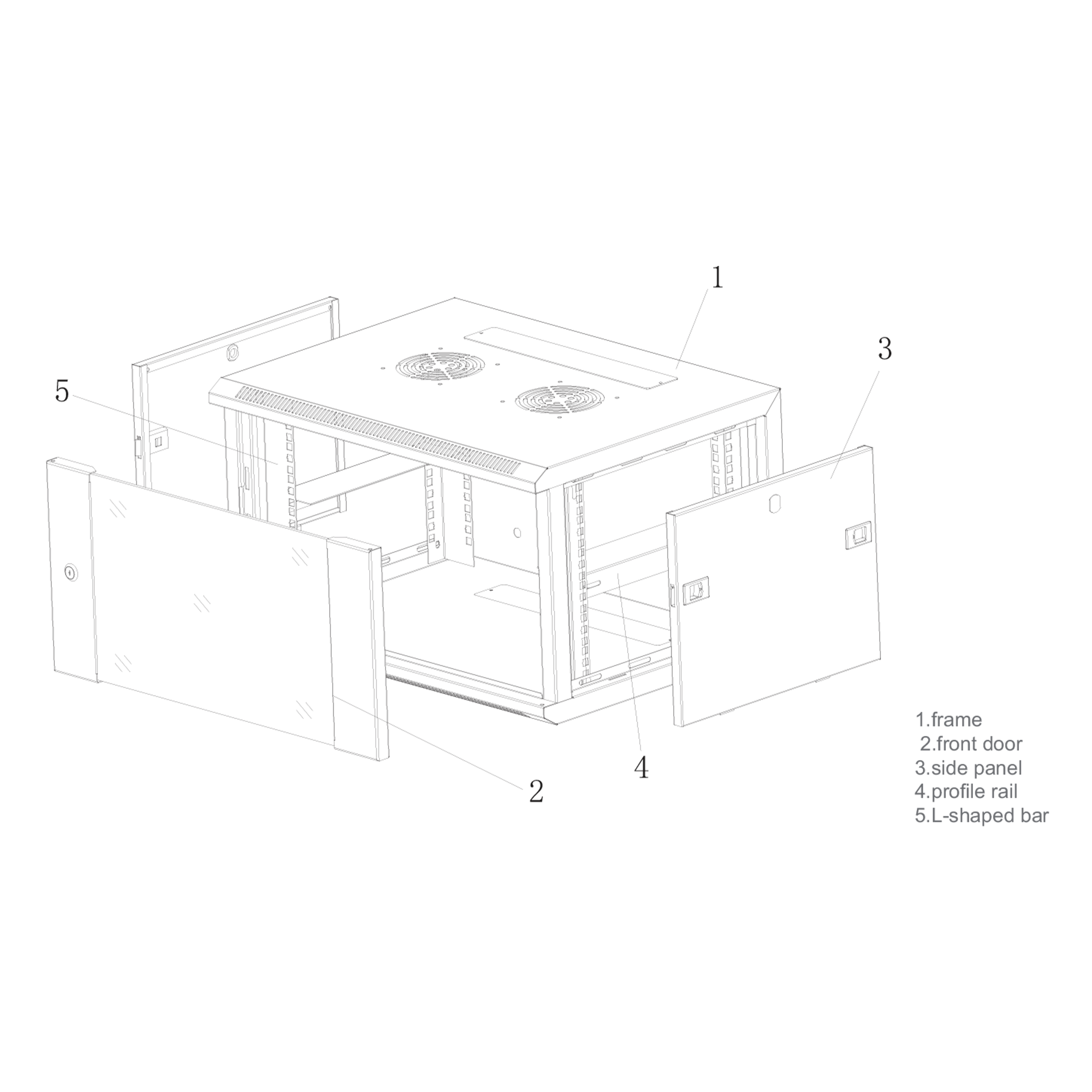

1	frames	1	pic	1.0mm cold-rolled steel	powder coating	---
2	front doors	1	pic	4mm tempered glasses/1.2mm cold-rolled steel	powder coating	---
3	side panels	2	pic	1.0mm cold-rolled steel	powder coating	---
4	profile rails	4	pic	1.5mm cold-rolled steel	powder coating	---
5	L-shaped panels	2	pic	1.2mm cold-rolled steel	powder coating	---
6	cage nuts	20	pic	---	---	---

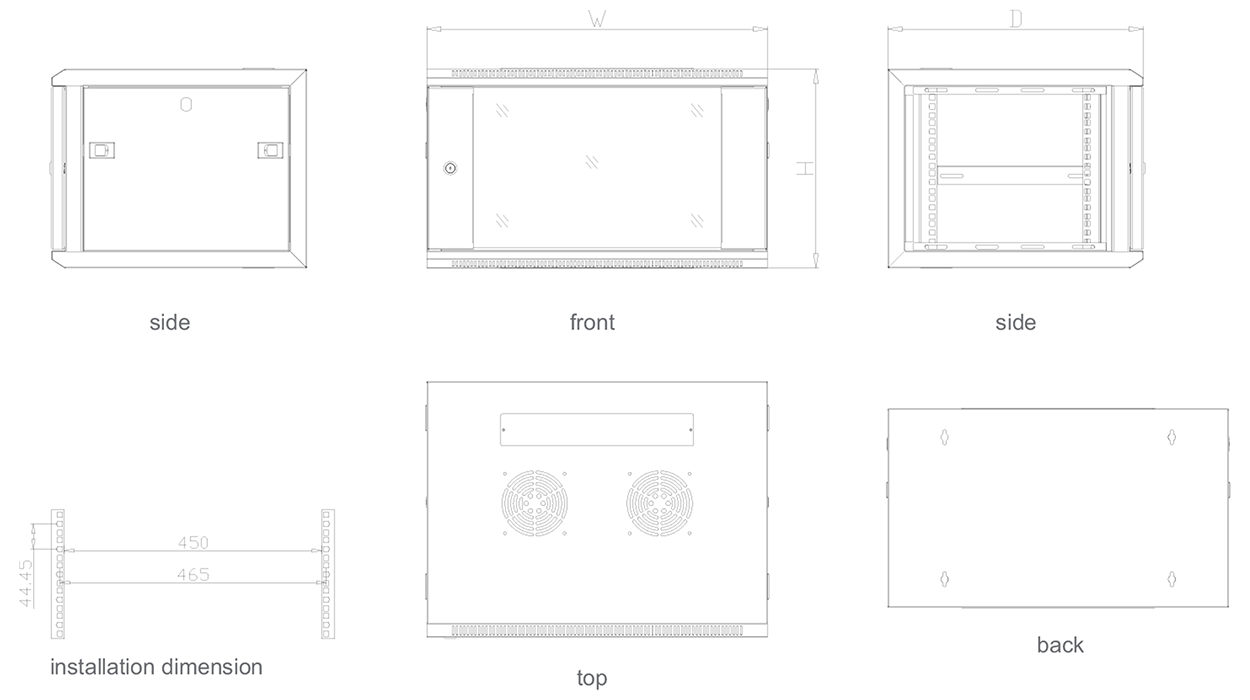

type	capacity	width	depth	height	packing dimensions			volume
		width	depth	height	length	width	height	volume
		(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(m3)
QC-L5406-f☆	6U	540	400	350	515	415	365	0.084
QC-L5409-f☆	9U	540	400	485	515	415	500	0.115
QC-L5412-f☆	12U	540	400	615	515	415	530	0.145
QC-L5415-f☆	15U	540	400	750	515	415	765	0.176
QC-L6406-f☆	6U	600	450	350	615	465	365	0.104
QC-L6409-f☆	9U	600	450	485	615	465	500	0.142
QC-L6412-f☆	12U	600	450	615	615	465	530	0.18
QC-L6415-f☆	15U	600	450	750	615	465	765	0.218


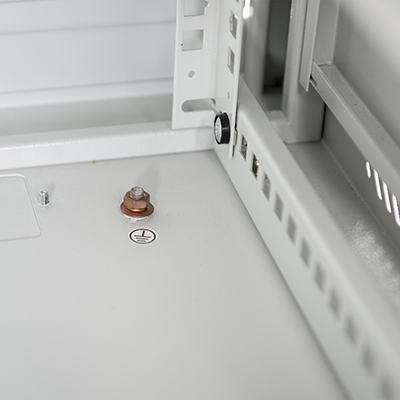

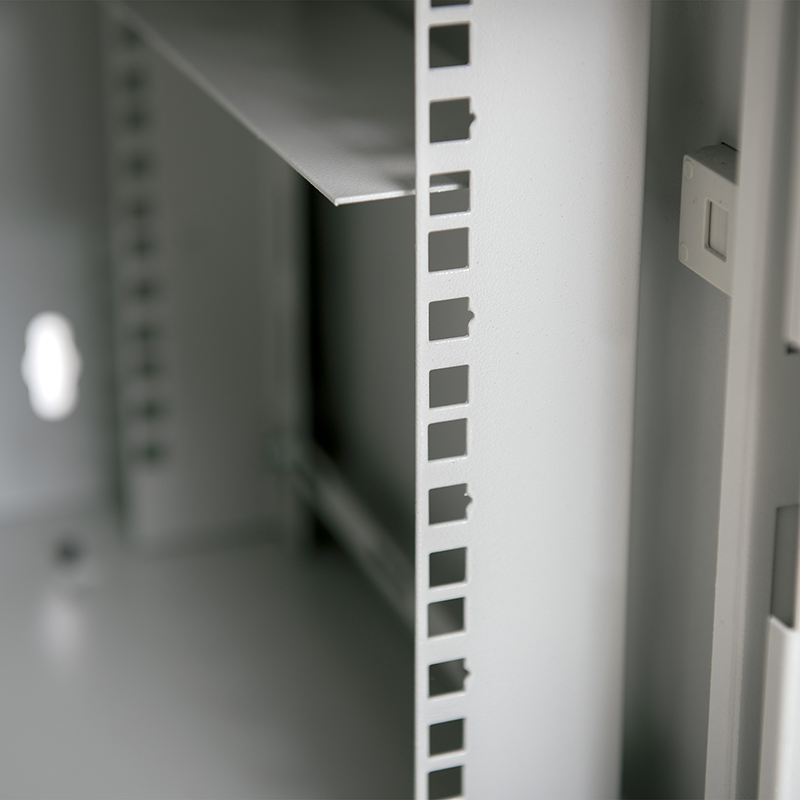

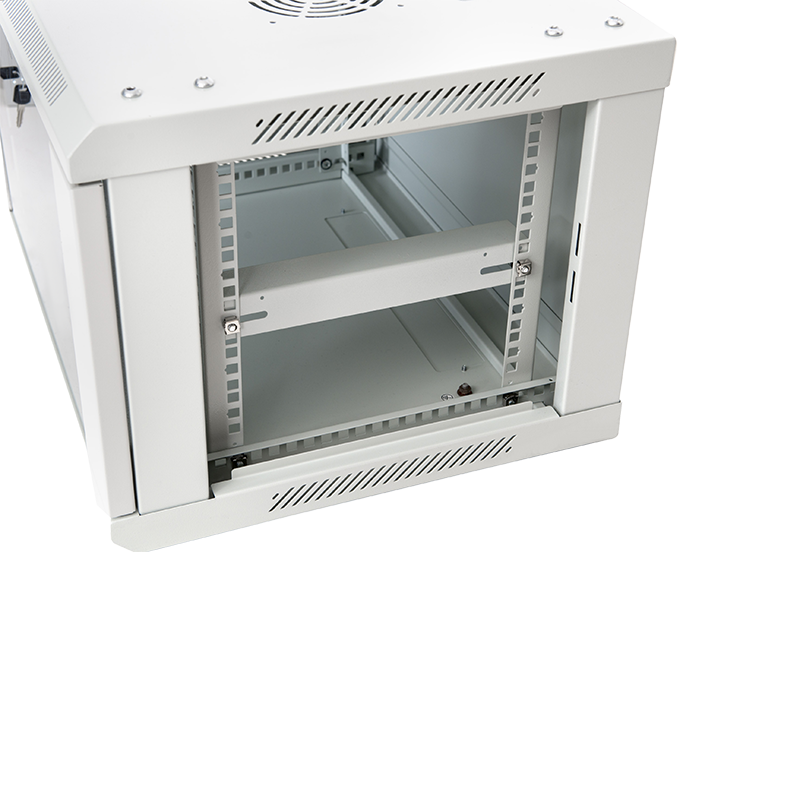

●adjustable front/back profile rails	●side	●adjustable front/back profile rails

1. Drawings or specifications	We get the drawings or specifications from customers.
2. Drawings Confirmation	We will draw the 3D drawings according to the customers' 2D drawings or specifications, and send the 3D drawings to customers for confirmation.
3. Quotation	We will quote after getting the customers' confirmation, or quote directly according to customers' 3D drawings.
4. Making Samples(not standard)	Standard products do not need samples, non-standardized samples will be made and sent to the customer for confirmation
5. Mass Producing	We will produce the products after getting the customers' confirmation and orders.
6. Inspection	We will inspect the products by our inspectors or ask the customers to inspect together with us when finished.
7. Shipment	We will ship the goods to the customers after getting the inspection result ok and the customers' confirmation.
