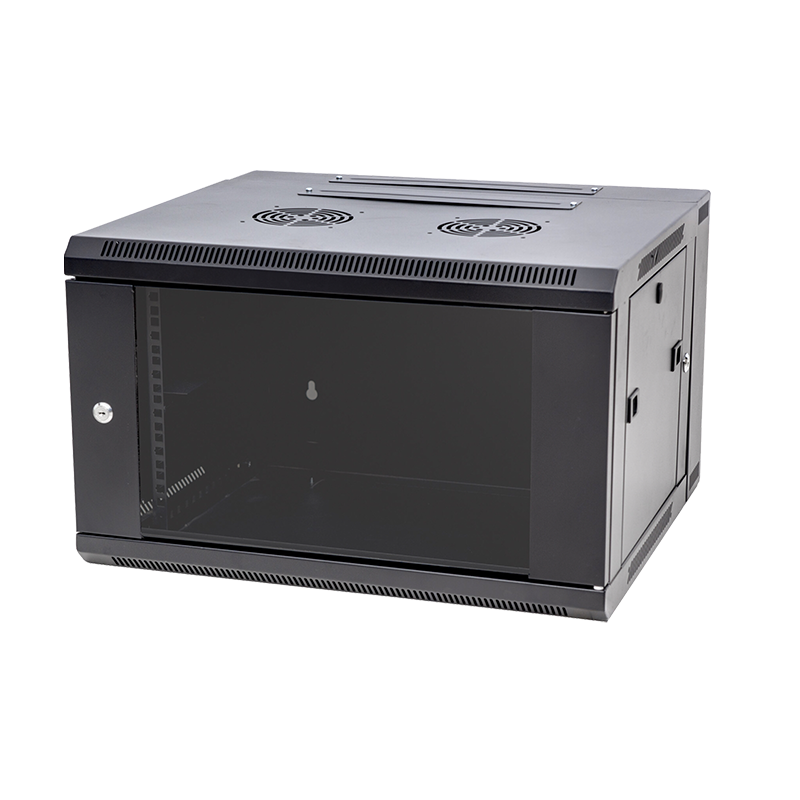

QB Wall mount rack

Standards:
●Comply with ANSI/EIA RS-310-D、IEC297-2、DIN41494;PART1、DIN41494;PART7, ETSI standard.

Features:
●Exquisite design with precise dimensions and craftsmanship;
●Easy installation;
●Optional locks for side panels;
●Closable top/bottom cable entry openings;

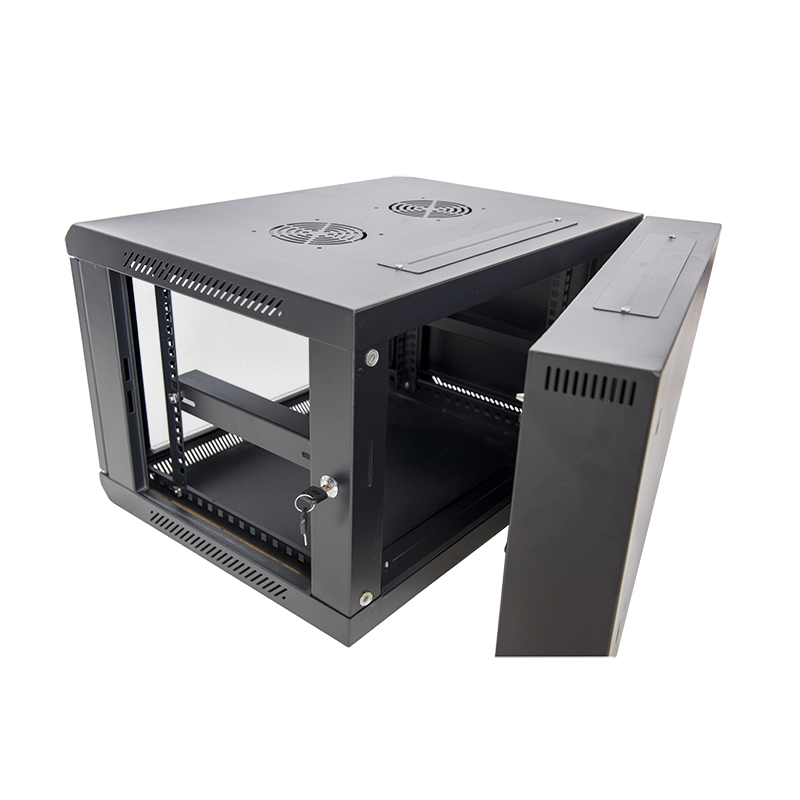

●Removable side panels and front/back doors for operation and watching;
●Casters or support feet can be installed when it’s on ground;
●Doors can be opened from the left or right;
●Top cover is available to fans.

+86-574-63661713/+86-574-63666728 Contact Us

Description
Customization Process
Feedback

Main material:

●Cold-rolled steel;
●Thickness: mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm.

Surface treatment:
●Degreasing, pickling, phosphating, laundering, powder coating.
●Doors can be opened from the left or right;

Protection class:
●IP20

Load capacity:
●Static load:60KG

Standard Configurations：
item	name	quantity	unit	materials	surface treatment	remarks
1	frames	2	pic	1.2mm cold-rolled steel	powder coating	---
2	front doors	1	pic	5mmtempered glasses/1.2mmcold-rolled steel	powder coating	---
3	side panels	2	pic	1.0mmcold-rolled steel	powder coating	---
4	back panels	1	pic	1.5mmcold-rolled steel	powder coating	---
5	L-shaped panels	2	pic	1.2mmcold-rolled steel	powder coating	---
6	vertical brackets	4	pic	1.5mmcold-rolled steel	powder coating	---
9	cage nuts	20	pic	---	---	---

specifications：
type	capacity	width	depth	height	packing dimensions			volume
		width	depth	height	length	width	height	volume
		(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(m3)
QA5506-f☆	6U	540	550	370	555	565	385	0.121
QA5509-f☆	9U	540	550	500	555	565	515	0.161
QA5512-f☆	12U	540	550	635	555	565	650	0.204
QA5515-f☆	15U	540	550	770	555	565	785	0.246
QA6506-f☆	6U	600	550	370	615	565	385	0.134
QA6509-f☆	9U	600	550	500	615	565	515	0.179
QA6512-f☆	12U	600	550	635	615	565	650	0.226
QA6515-f☆	15U	600	550	770	615	565	785	0.273

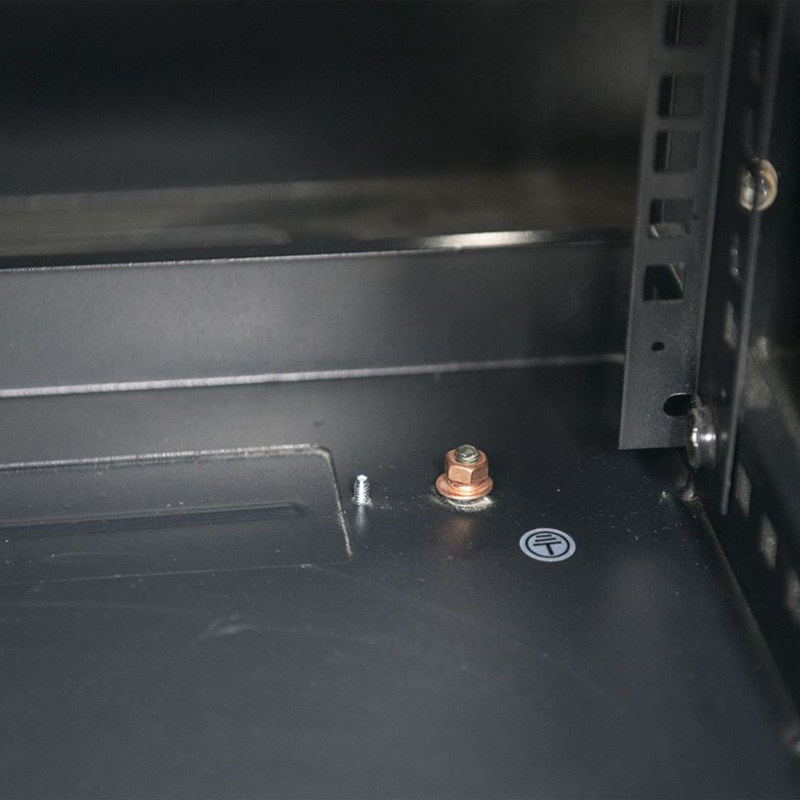

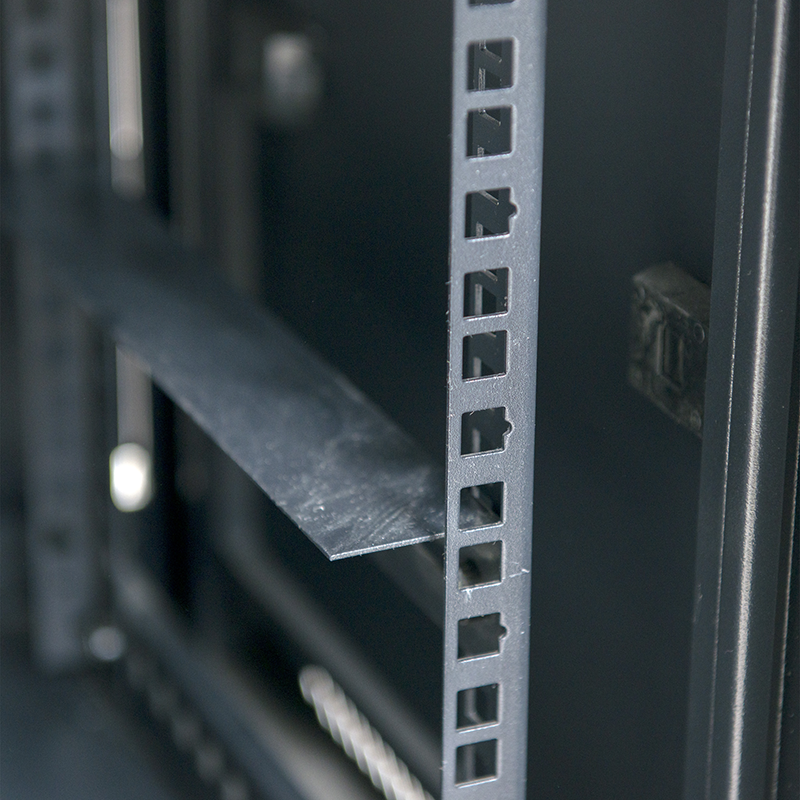

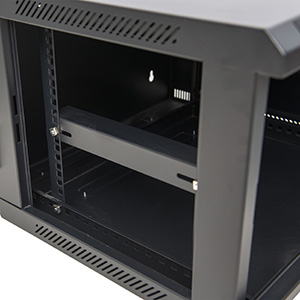

●Openable trunk	●Earthing screw inside	●Adjustable front/back	●Removable side panel

1. Drawings or specifications	We get the drawings or specifications from customers.
2. Drawings Confirmation	We will draw the 3D drawings according to the customers' 2D drawings or specifications, and send the 3D drawings to customers for confirmation.
3. Quotation	We will quote after getting the customers' confirmation, or quote directly according to customers' 3D drawings.
4. Making Samples(not standard)	Standard products do not need samples, non-standardized samples will be made and sent to the customer for confirmation
5. Mass Producing	We will produce the products after getting the customers' confirmation and orders.
6. Inspection	We will inspect the products by our inspectors or ask the customers to inspect together with us when finished.
7. Shipment	We will ship the goods to the customers after getting the inspection result ok and the customers' confirmation.
