QA Wall mount rack

Standards:
●Comply with ANSI/EIA RS-310-D、IEC297-2、DIN41494;PART1、DIN41494;PART7, ETSI standard.

Features:
●Exquisite design with precise dimensions and craftsmanship;
●Easy installation;
●Optional locks for side panels;
●Closable top/bottom cable entry openings;
●Removable side panels and front/back doors for operation and watching;
●Casters or support feet can be installed when it’s on ground;

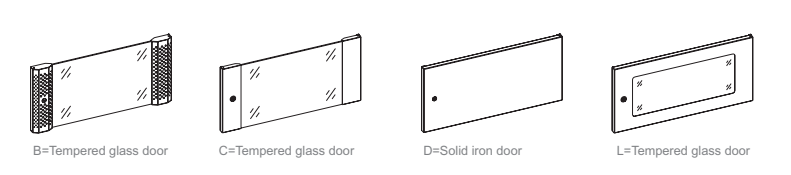

●Doors can be opened from the left or right;
●Top cover is available to fans.

+86-574-63661713/+86-574-63666728 Contact Us

Description
Customization Process
Feedback

Main material:
●Cold-rolled steel;
●Thickness: mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm.

Surface treatment:
●Degreasing, pickling, phosphating, laundering, powder coating;
●Doors can be opened from the left or right;

Protection class:
●IP20

Load capacity:
●Static load:60KG

Standard Configurations
item	name	quantity	unit	materials	surface treatment	remarks
1	top covers	1	pic	1.0mm cold-rolled steel	powder coating	---
2	bottom plates	1	pic	1.0mm cold-rolled steel	powder coating	---
3	frames	2	pic	1.0mm cold-rolled steel	powder coating	---
4	front doors	1	pic	5mm tempered glasses1.2mm cold-rolled steel	powder coating	---
5	side panels	2	pic	1.0mm cold-rolled steel	powder coating	---
6	horizontal brackets	4	pic	1.2mm cold-rolled steel	powder coating	---
7	L-shaped panels	2	pic	1.2mm cold-rolled steel	powder coating	---
8	back panels	1	pic	1.0mm cold-rolled steel	powder coating	---
9	wall hanging panels	1	pic	1.2mm cold-rolled steel	powder coating	---
10	profile rails	4	pic	1.5mm cold-rolled steel	powder coating	---
11	cage nuts	20	pic	---	---	---

specifications：
Type	capacity	width	depth	height	packing dimensions			volume	packing dimensions of spare parts	volume
		width	depth	height	length	width	height	volume		volume
		(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(m3)		(m3)
QA6406-f☆	6U	600	450	370	615	455	385	0.108	615455250	0.07
QA6409-f☆	9U	600	450	500	615	455	515	0.144	615520250	0.08
QA6412-f☆	12U	600	450	635	615	455	650	0.182	615655170	0.068
QA6415-f☆	15U	600	450	635	615	455	785	0.220	615785170	0.082

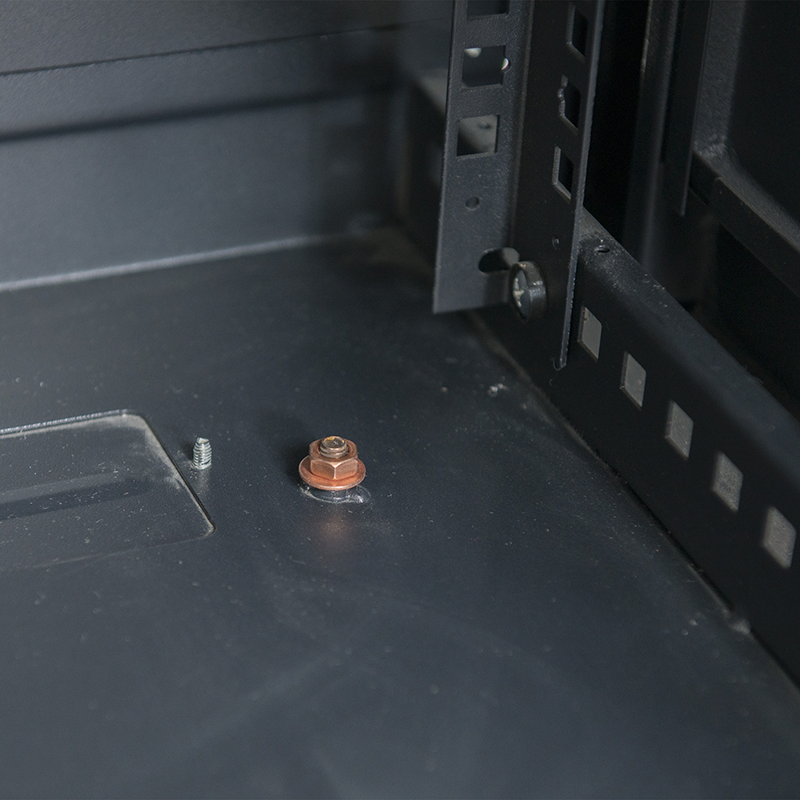

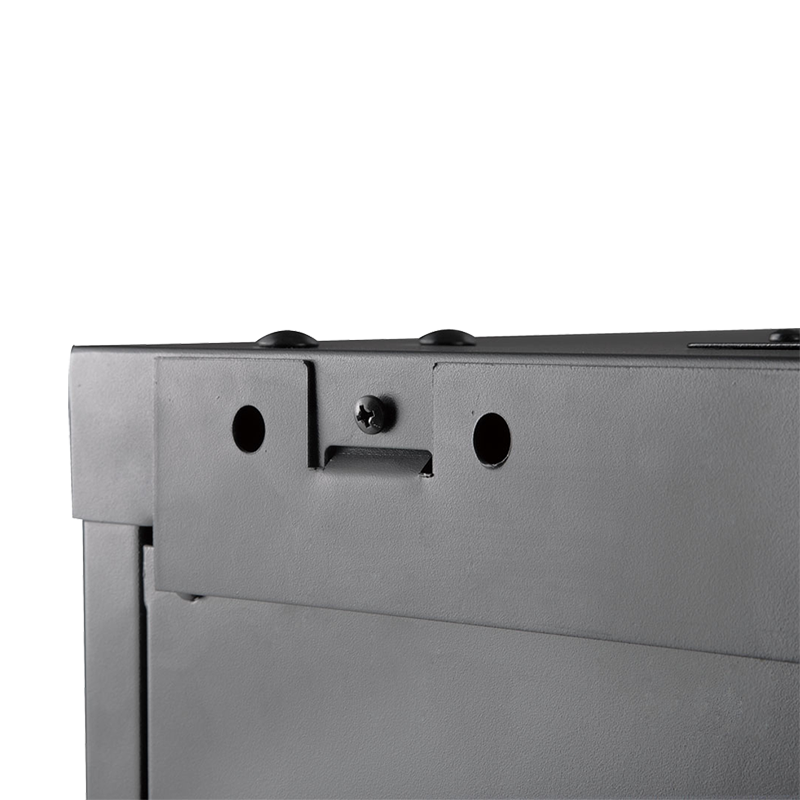

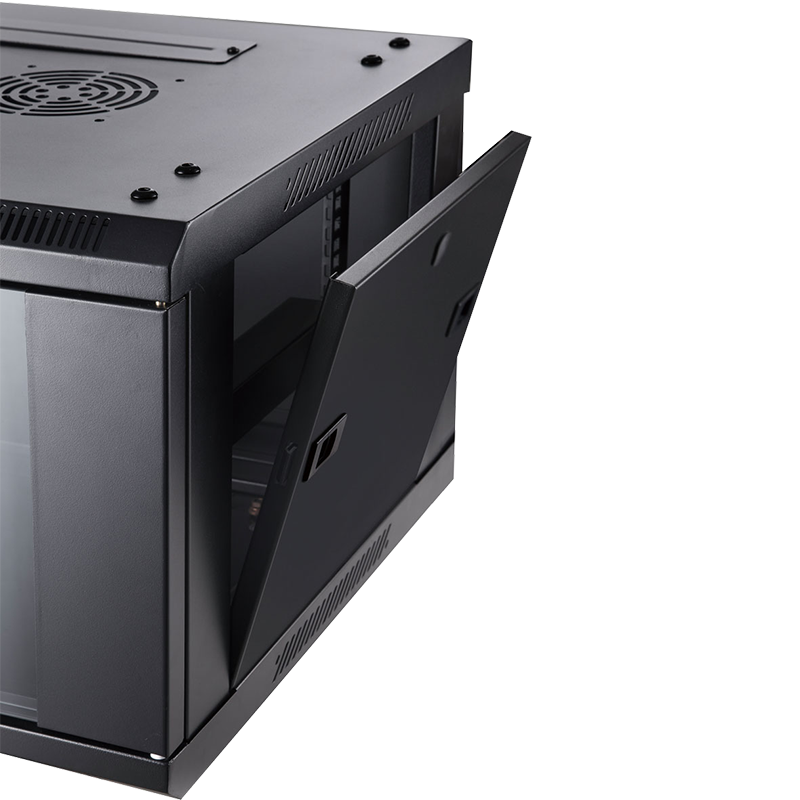

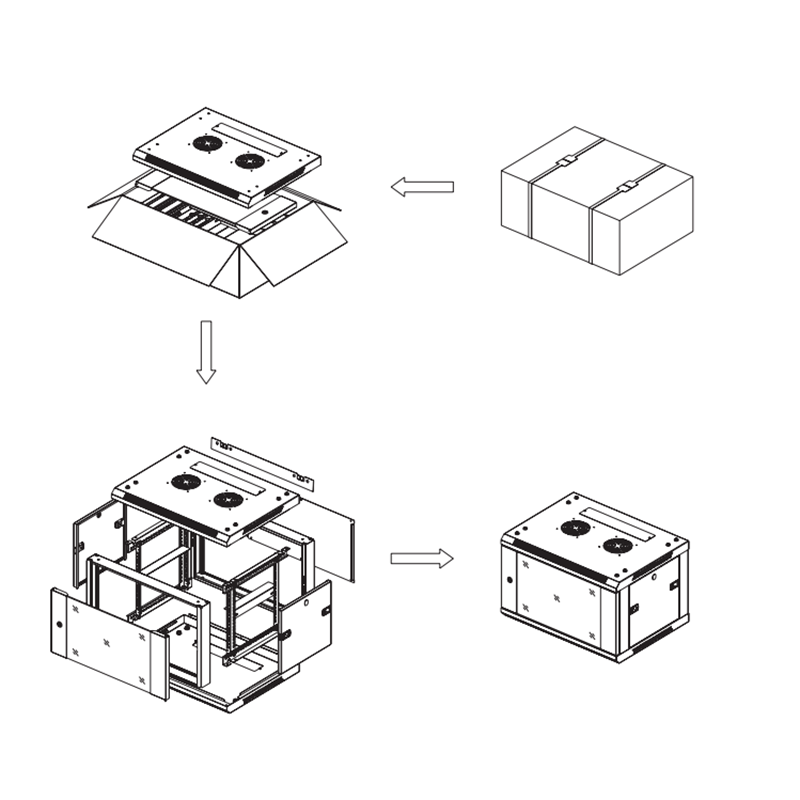

●Removable side panel	●Adjustable profile rail	●Earthing screw inside	●Installation mothod

1. Drawings or specifications	We get the drawings or specifications from customers.
2. Drawings Confirmation	We will draw the 3D drawings according to the customers' 2D drawings or specifications, and send the 3D drawings to customers for confirmation.
3. Quotation	We will quote after getting the customers' confirmation, or quote directly according to customers' 3D drawings.
4. Making Samples(not standard)	Standard products do not need samples, non-standardized samples will be made and sent to the customer for confirmation
5. Mass Producing	We will produce the products after getting the customers' confirmation and orders.
6. Inspection	We will inspect the products by our inspectors or ask the customers to inspect together with us when finished.
7. Shipment	We will ship the goods to the customers after getting the inspection result ok and the customers' confirmation.
