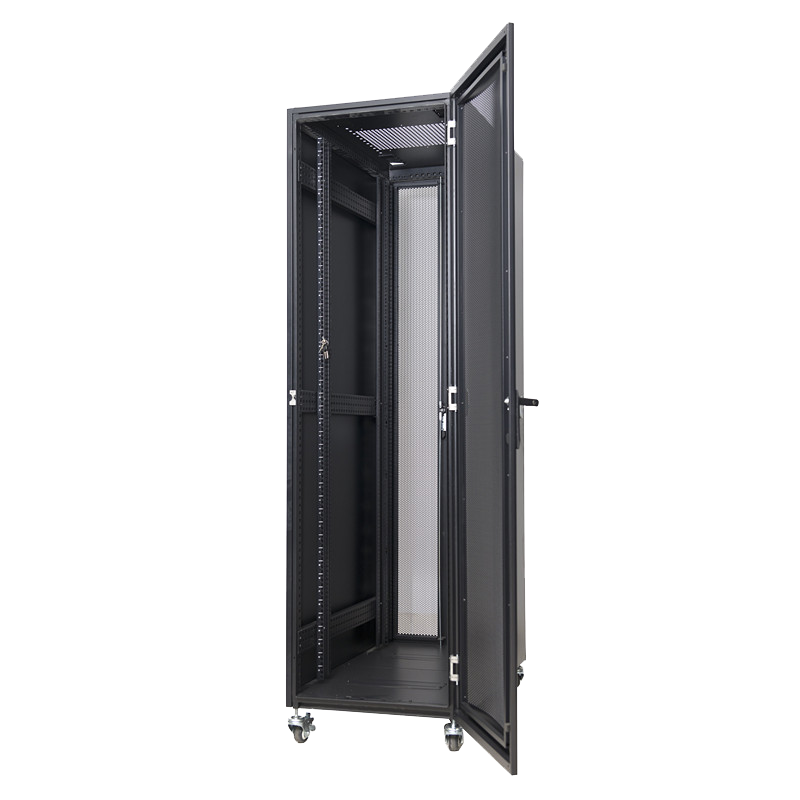

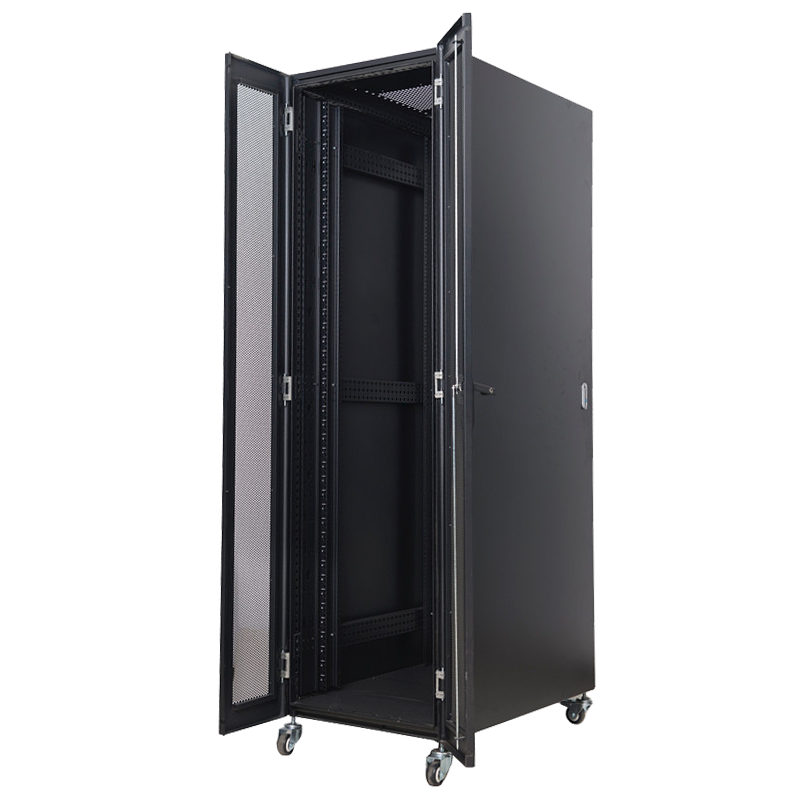

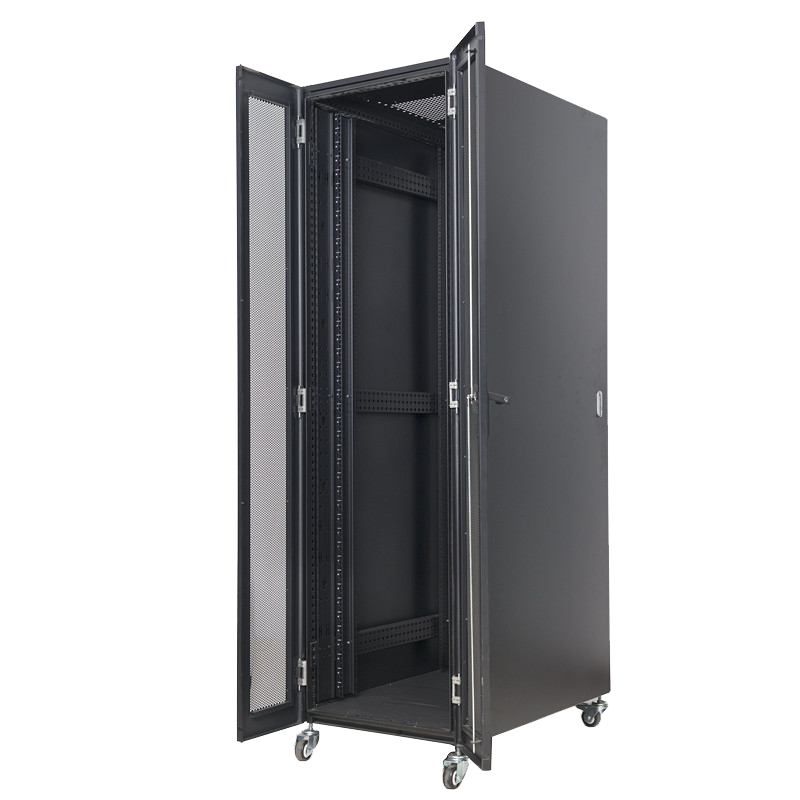

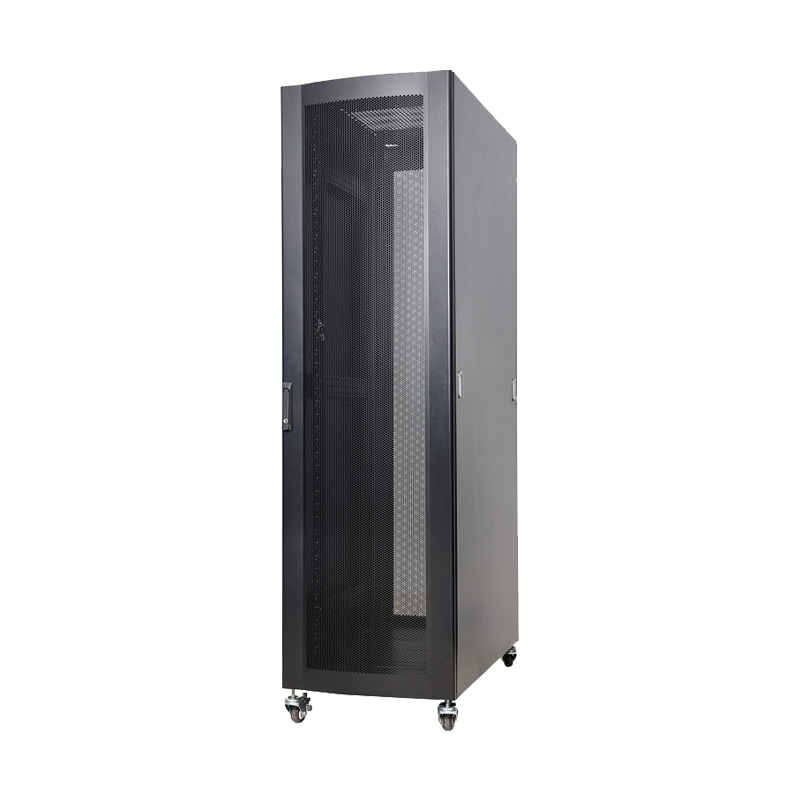

JE Standing server rack

Standards:
●Comply with ANSI/EIA RS-310-D、IEC297-2、DIN41494; PART1、DIN41494; PART7 Standard.

Features:
●Exquisite design with precise dimensions and craftsmanship;
●Side panels can be two panels for each one or one for each one;
●Two back sides with multifunctional cable routing panels;
●Advanced locks;
●Optional pedestals for fixation,cable routing,ventilation,and rat proof;
●Casters and support feet can be installed simultaneously;
●Curved front screen door & back double screen door enable equipment to ventilate well.
●Various optional accessories.

+86-574-63661713/+86-574-63666728 Contact Us

Description
Customization Process
Feedback

Main materials:
●Cold-rolled steel;
●Thickness of Steel: mounting profile: 2.0mm; mounting angle: 1.5mm; others: 1.2mm.

Surface treatment:
●Degreasing, pickling, phosphating, laundering,powder coating;

Protection class:
●IP20

Load capacity:
●Static load: 800KG

Standard Configurations
items	names	quantity	unit	materials	surface treatment	remarks
1	top covers	1	pc	1.2mm cold-rolled steel	powder coating	---
2	9-folded frames	1	pc	1.5mm cold-rolled steel	powder coating	---
3	side doors	1	pc	1.5mm cold-rolled steel	powder coating	---
4	left screen doors	1	pc	1.2mm cold-rolled steel	powder coating	---
5	right screen doors	1	pc	1.2mm cold-rolled steel	powder coating	---
6	curved front screen doors	1	pc	1.5mm cold-rolled steel	powder coating	---
7	cable managers	2	pc	1.5mm cold-rolled steel	powder coating	---
8	vertical shelves	4	pc	2.0mm cold-rolled steel	powder coating	---
9	horizontal shelves	6	pc	2.0mm cold-rolled steel	powder coating	---
10	bottom plates	2	pc	1.5mm cold-rolled steel	powder coating	---
11	casters	4	pc	---	---	---
12	cage nuts	40	pc	---	---	---

Specifications
types	capacity	width	depth	height	packing dimensions			volumes
		width	depth	height	length	width	height	volumes
		(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(m3)
JE6842-fb☆	42U	600	800	2130	615	815	2145	1.075
JE6142-fb☆	42U	600	1000	2130	615	1015	2145	1.338
JE6847-fb☆	47U	600	800	2330	615	815	2345	1.175
JE6147-fb☆	47U	600	1000	2330	615	1015	2345	1.464
JE8842-fb☆	42U	800	800	2130	815	815	2145	1.425
JE8142-fb☆	42U	800	1000	2130	815	1015	2145	1.774
JE8847-fb☆	47U	800	800	2330	815	815	2345	1.557
JE8147-fb☆	47U	800	1000	2330	815	1015	2345	1.940

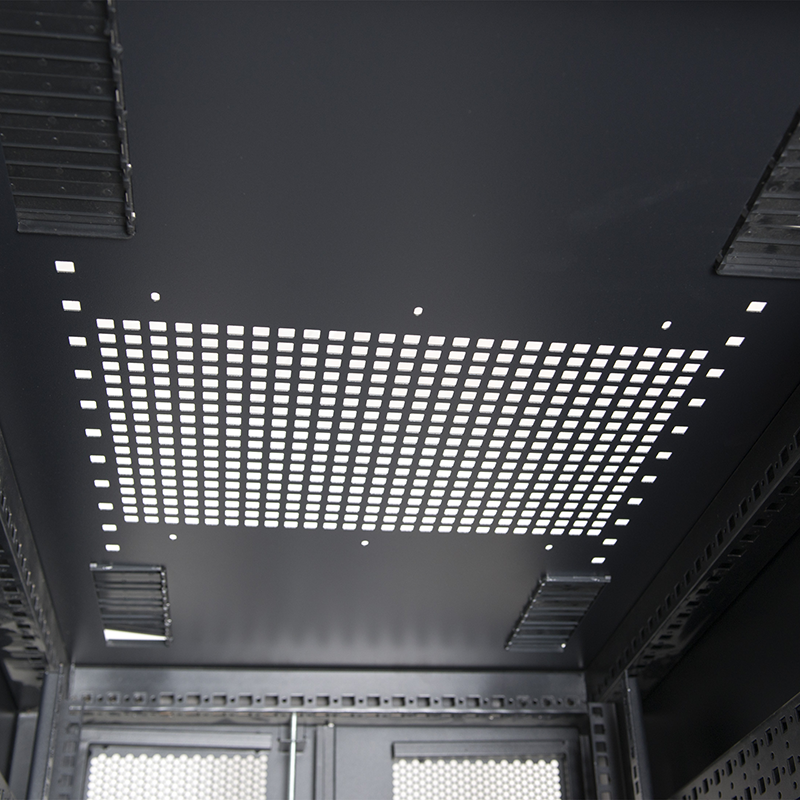

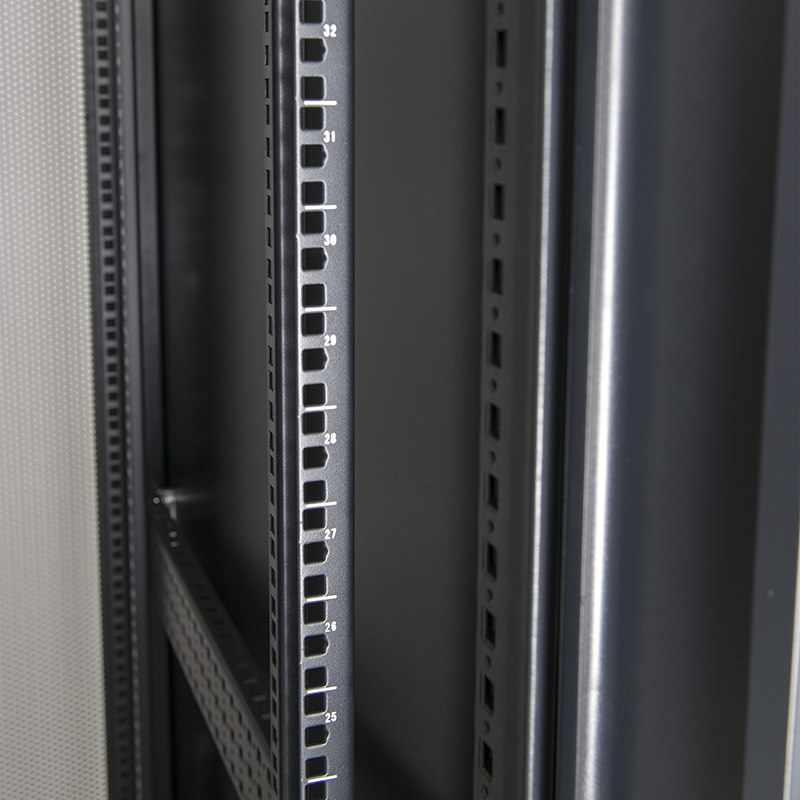

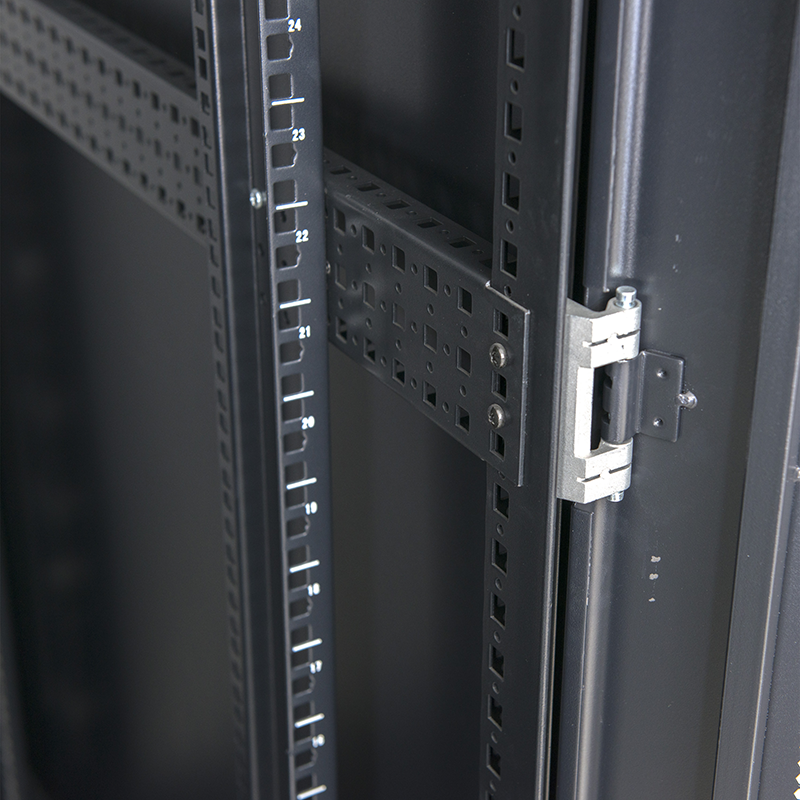

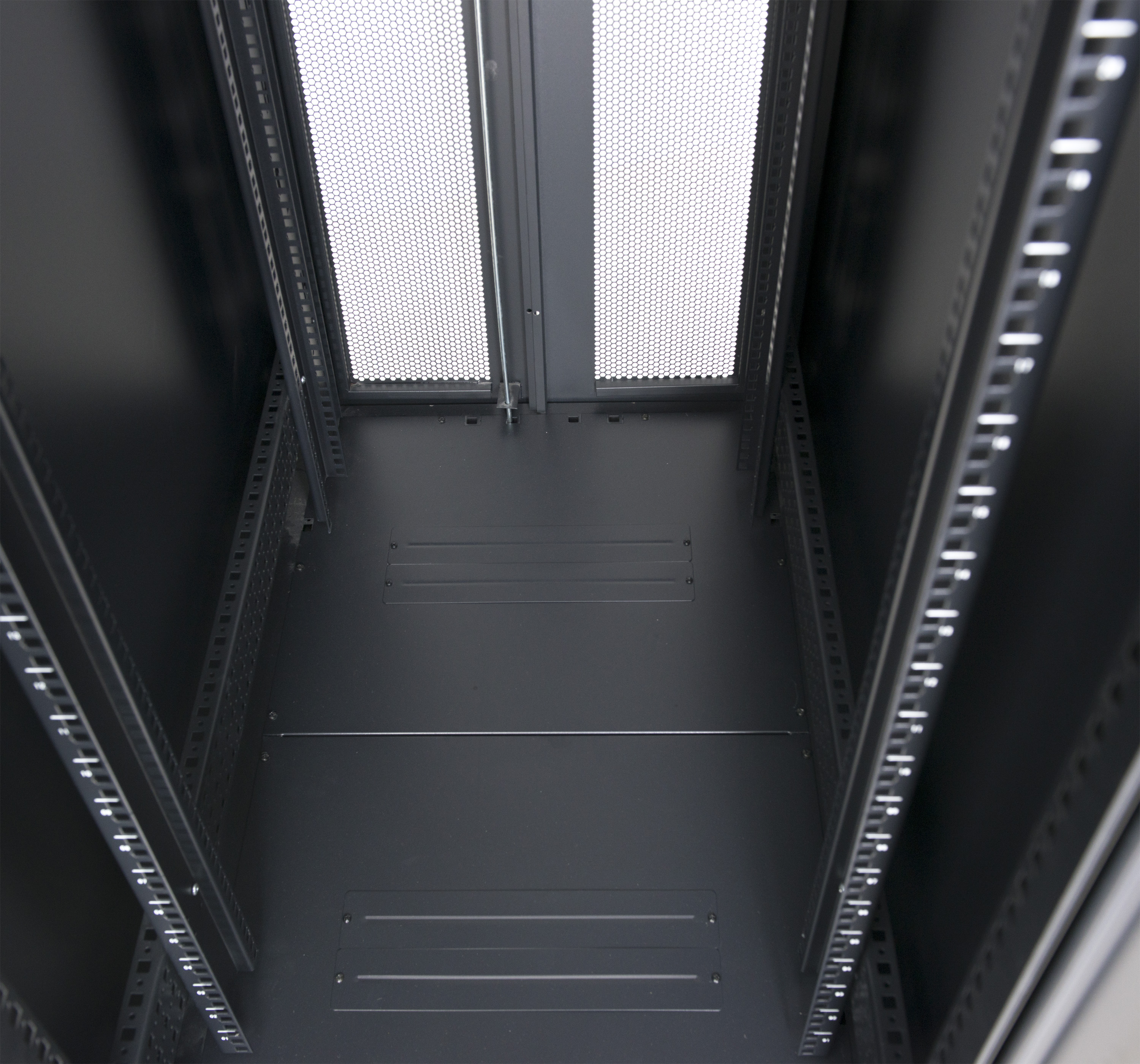

top covers	bottom plates	multifunctional cable managers	9-crease frame	profile rails with scales on

1. Drawings or specifications	We get the drawings or specifications from customers.
2. Drawings Confirmation	We will draw the 3D drawings according to the customers' 2D drawings or specifications, and send the 3D drawings to customers for confirmation.
3. Quotation	We will quote after getting the customers' confirmation, or quote directly according to customers' 3D drawings.
4. Making Samples(not standard)	Standard products do not need samples, non-standardized samples will be made and sent to the customer for confirmation
5. Mass Producing	We will produce the products after getting the customers' confirmation and orders.
6. Inspection	We will inspect the products by our inspectors or ask the customers to inspect together with us when finished.
7. Shipment	We will ship the goods to the customers after getting the inspection result ok and the customers' confirmation.
