JC Standing server rack

Standards:
●Comply with ANSI/EIA RS-310-D、IEC297-2、DIN41494; PART1、DIN41494; PART7 Standard.

Features:
●Exquisite design with precise dimensions and craftsmanship.
●Good compatibility which is available to various servers.Perfect ventilation.

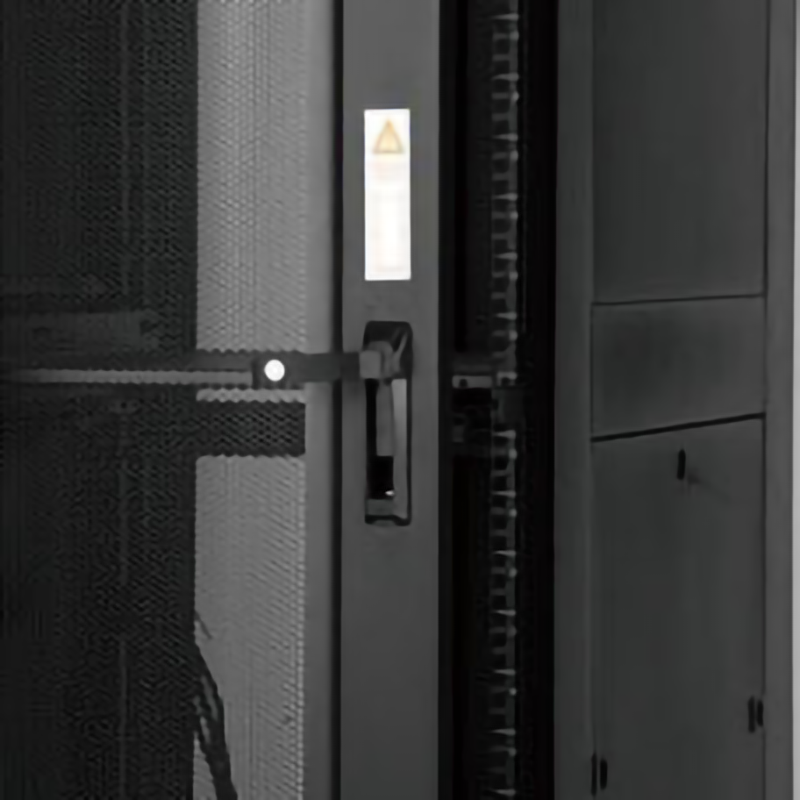

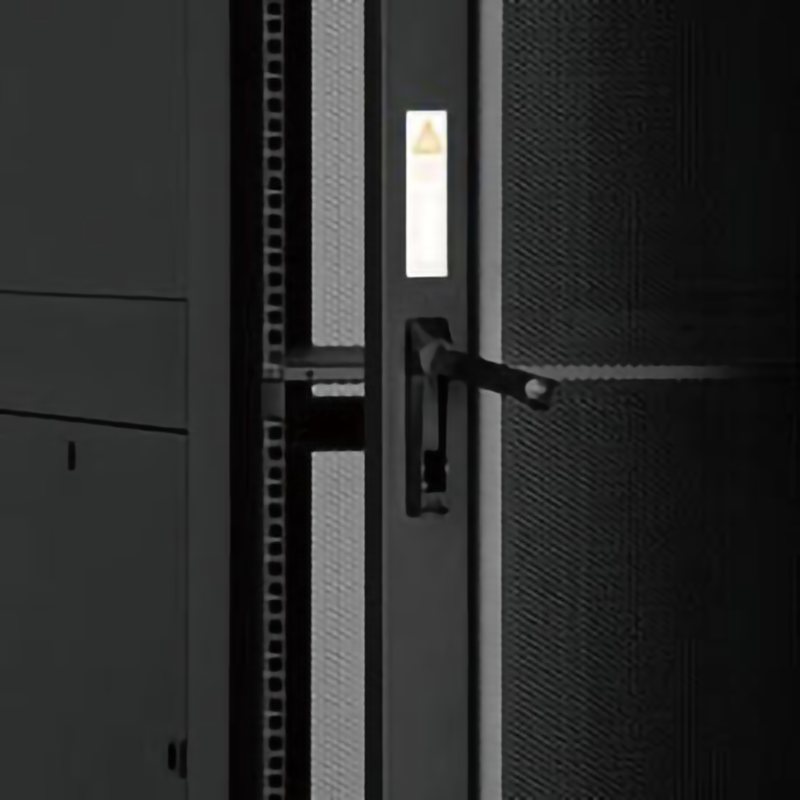

●Doors can be opened from the left or right.
●Two side panels for each side can be separately open,which are easy to operation and maintenance.
●Removable side panels and front/back doors for operation and watching.
●Locks are available to side panels .
●Optional pedestals for fixation,cable routing,ventilation,and rat proof.
●Casters and support feet can be installed simultaneously.
●Adjustable front/back profile rails with scales on.
●Various optional accessories.

+86-574-63661713/+86-574-63666728 Contact Us

Description
Customization Process
Feedback

Main materials:
●cold-rolled steel.
●Thickness of Steel: mounting profile: 2.0mm; mounting angle: 1.5mm; others: 1.2mm.

Surface treatment:
●Degreasing, pickling, phosphating, laundering,powder coating.

Protection class:
●IP20

Load capacity:
●Static load: 800KG

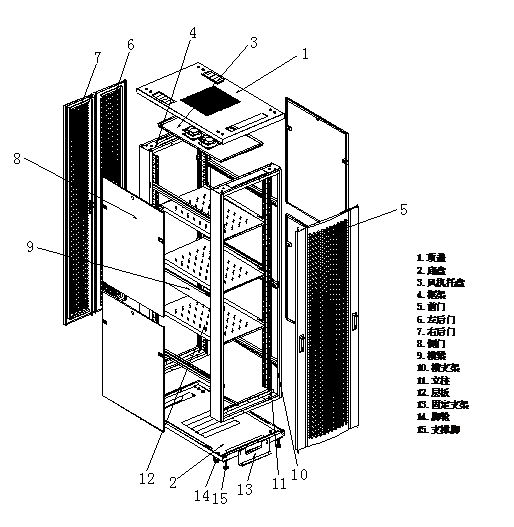

Standard Configurations
items	names	quantity	unit	materials	surface treatment	remarks
1	top covers	1	pc	1.2mm cold-rolled steel	powder coating	---
2	bottom plates	1	pc	1.2mm cold-rolled steel	powder coating	---

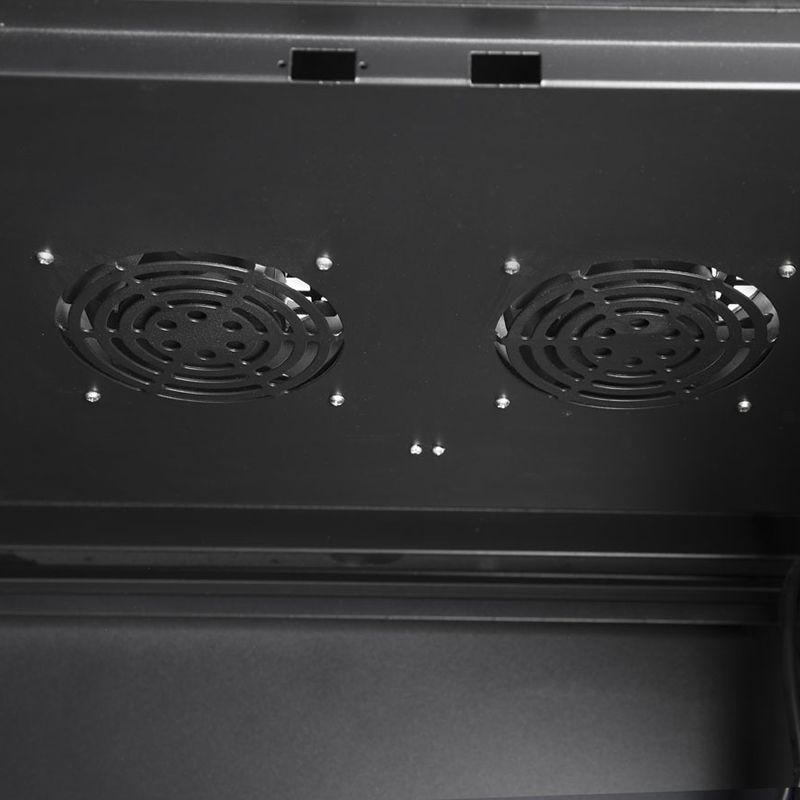

3	fan plate with 4 fans	1	pc	1.2mm cold-rolled steel	powder coating	4 fans
4	frames	2	pc	1.2mm cold-rolled steel	powder coating	---
5	front doors	1	pc	1.2mm cold-rolled steel	powder coating	door type G
6	left back doors	1	pc	1.2mm cold-rolled steel	powder coating	door type K
7	right back doors	1	pc	1.2mm cold-rolled steel	powder coating	door type K
8	side panels	4	pc	1.0mm cold-rolled steel	powder coating	---
9	beams	2	pc	1.2mm cold-rolled steel	powder coating	---
10	horizontal brackets	6	pc	1.2mm cold-rolled steel	powder coating	---
11	profile rails	4	pc	2.0mm cold-rolled steel	powder coating	---
12	shelves	3	pc	1.2mm cold-rolled steel	powder coating	---
13	fixing plate	2	pc	2mm cold-rolled steel	powder coating	---
14	casters	4	pc	---	---	---
15	M12 support feet	4	pc	---	---	---
16	cage nuts	40	pc	---	---	---
17	sockets with 6 outlets	1	pc	---	---	---
The above configurations are for 600-wide racks.For 800-wide racks,6 junction boxes and 2 cable managers are required.

Specifications
types	capacity	width	depth	height	packing dimensions			volumes	packing dimensions of spare parts			volumes
		width	depth	height	length	width	height	volumes	package A	package B	package C	volumes
		(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(m3)	package A	package B	package C	(m3)
JC6837-fb☆	37U	600	800	1833	615	815	1843	0.919	1760615320	815615130	———	0.464
JC6137-fb☆	37U	600	1000	1833	615	1015	1843	1.144	1760615320	1015615130	169060730	0.501
JC6842-fb☆	42U	600	800	2055	615	815	1985	1.030	1980615320	815615130	———	0.514
JC6142-fb☆	42U	600	1000	2055	615	1015	1985	1.283	1980615320	191055730	1015615130	0.553
JC6847-fb☆	47U	600	800	2277	615	815	2205	1.141	2205615320	815615130	———	0.565
JC6147-fb☆	47U	600	1000	2277	615	1015	2205	1.421	2205615320	213560730	1015615130	0.607
JC8837-fb☆	37U	800	800	1833	815	815	1843	1.224	1760815320	815815130	———	0.616
JC8842-fb☆	42U	800	800	2055	815	815	2065	1.372	1980815320	815815130	———	0.682
JC8142-fb☆	42U	800	1000	2055	815	1015	2065	1.708	1980815320	1015815130	———	0.704
JC8847-fb☆	47U	800	800	2277	815	815	2287	1.519	2205615320	815815130	———	0.75
JC8147-fb☆	47U	800	1000	2277	815	1015	2287	1.892	2205815320	1015815130	213560730	0.772

1. Drawings or specifications	We get the drawings or specifications from customers.
2. Drawings Confirmation	We will draw the 3D drawings according to the customers' 2D drawings or specifications, and send the 3D drawings to customers for confirmation.
3. Quotation	We will quote after getting the customers' confirmation, or quote directly according to customers' 3D drawings.
4. Making Samples(not standard)	Standard products do not need samples, non-standardized samples will be made and sent to the customer for confirmation
5. Mass Producing	We will produce the products after getting the customers' confirmation and orders.
6. Inspection	We will inspect the products by our inspectors or ask the customers to inspect together with us when finished.
7. Shipment	We will ship the goods to the customers after getting the inspection result ok and the customers' confirmation.
