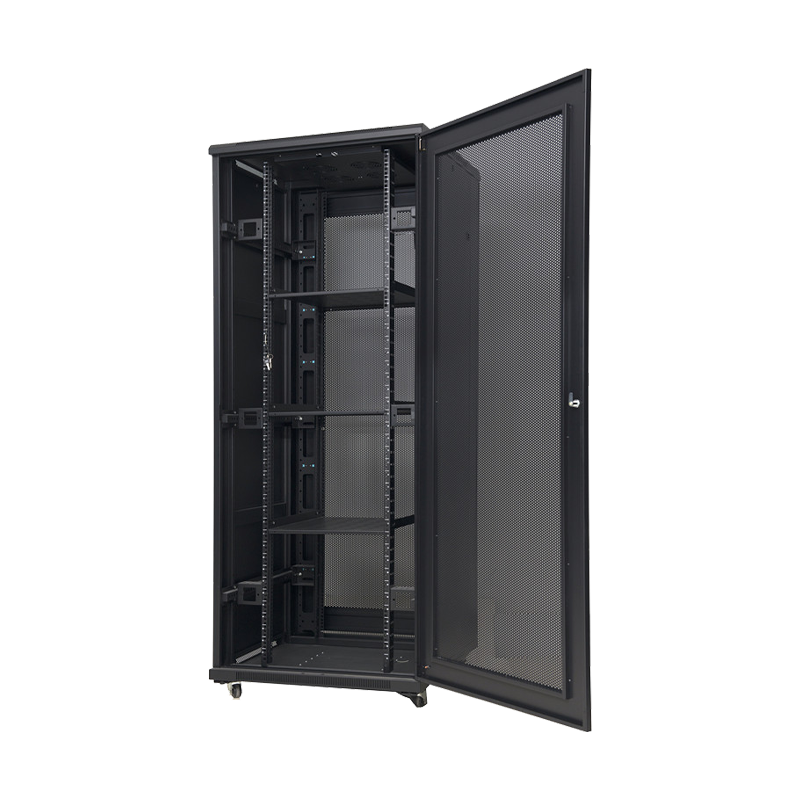

JB800 Standing server rack

Standards:
●Comply with ANSI/EIA RS-310-D、IEC297-2、DIN41494;PART1、DIN41494;PART7, ETSI standard.

Features:
●Exquisite design with precise dimensions and craftsmanship.

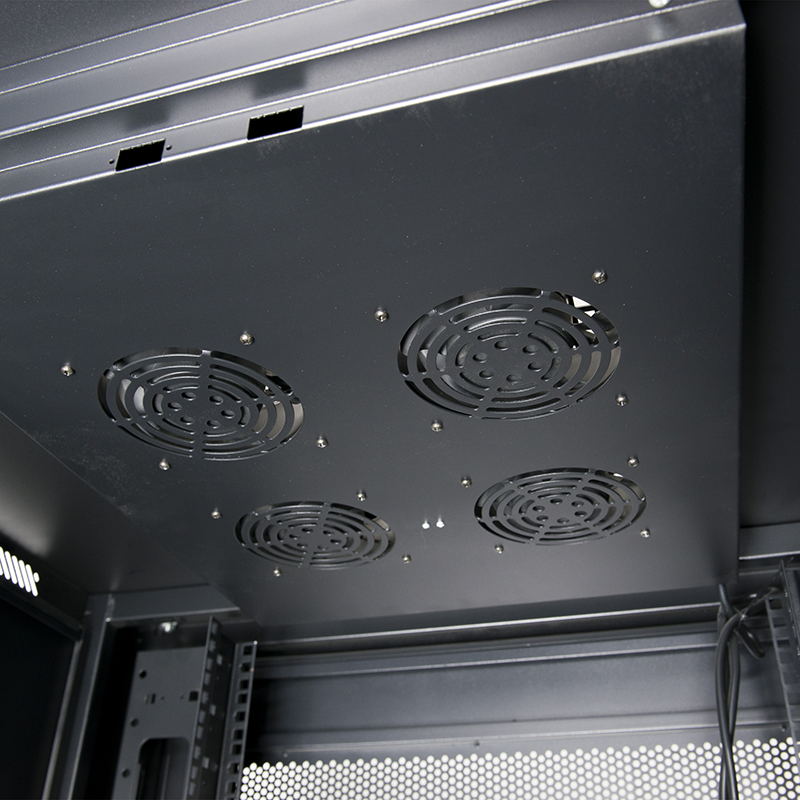

●Good compatibility which is available to various servers.Perfect ventilation.

●Side panels can be two panels for each one or one for each one.

●Optional locks for side panels.

●Removable side panels and front/back doors for operation and watching.

●Optional pedestals for fixation,cable routing,ventilation,and rat proof.

●Casters and support feet can be installed simultaneously.

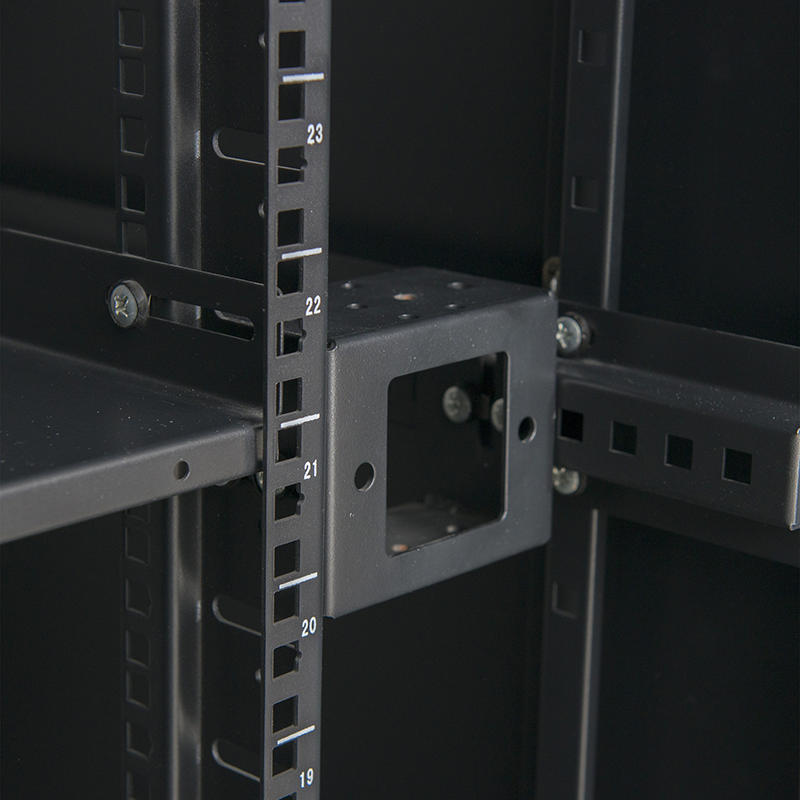

●Adjustable front/back profile rails with scales on.

+86-574-63661713/+86-574-63666728 Contact Us

Description
Customization Process
Feedback

Main material:
●Cold-rolled steel;
●Thickness: mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm.

Protection class:
●IP20

Load capacity:
●Static load: 800KG.

Surface treatment:
●Degreasing, pickling, phosphating, laundering, powder coating.

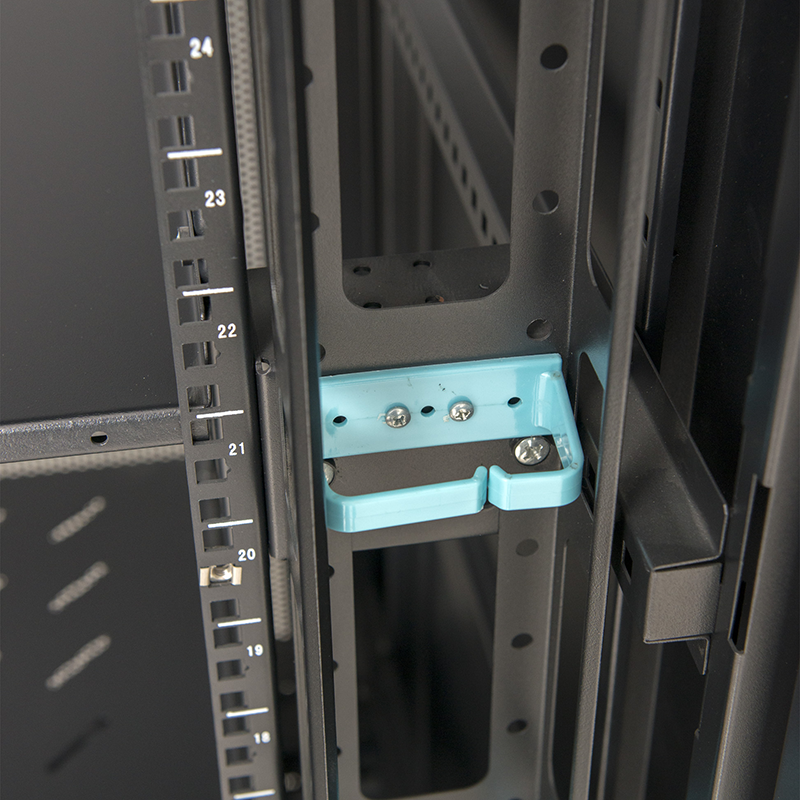

●Two back sides with multifunctional cable routing panel ●cable management ●Adjustable module

1. Drawings or specifications	We get the drawings or specifications from customers.
2. Drawings Confirmation	We will draw the 3D drawings according to the customers' 2D drawings or specifications, and send the 3D drawings to customers for confirmation.
3. Quotation	We will quote after getting the customers' confirmation, or quote directly according to customers' 3D drawings.
4. Making Samples(not standard)	Standard products do not need samples, non-standardized samples will be made and sent to the customer for confirmation
5. Mass Producing	We will produce the products after getting the customers' confirmation and orders.
6. Inspection	We will inspect the products by our inspectors or ask the customers to inspect together with us when finished.
7. Shipment	We will ship the goods to the customers after getting the inspection result ok and the customers' confirmation.
