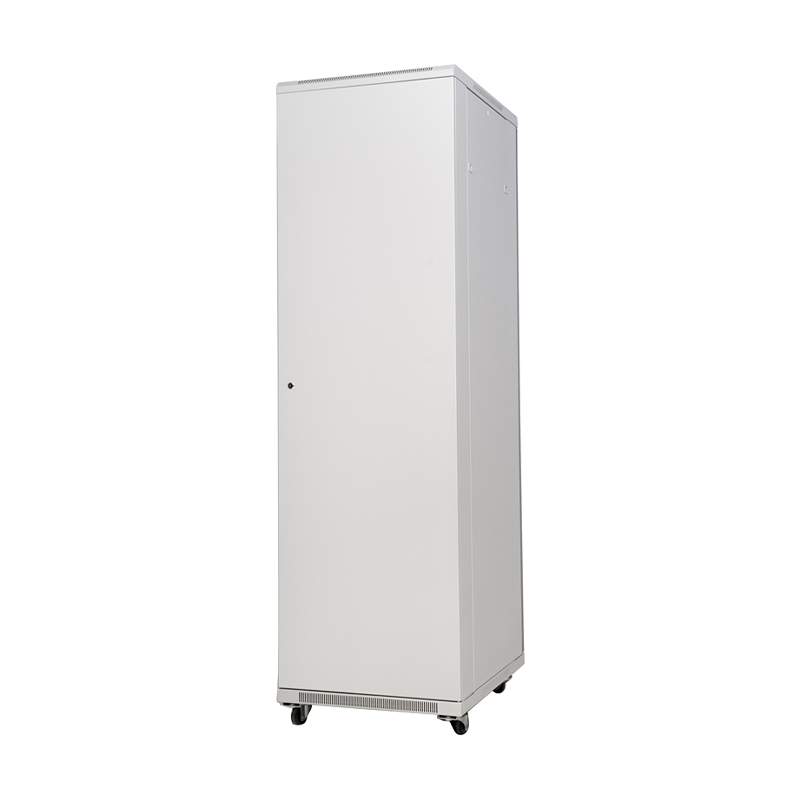

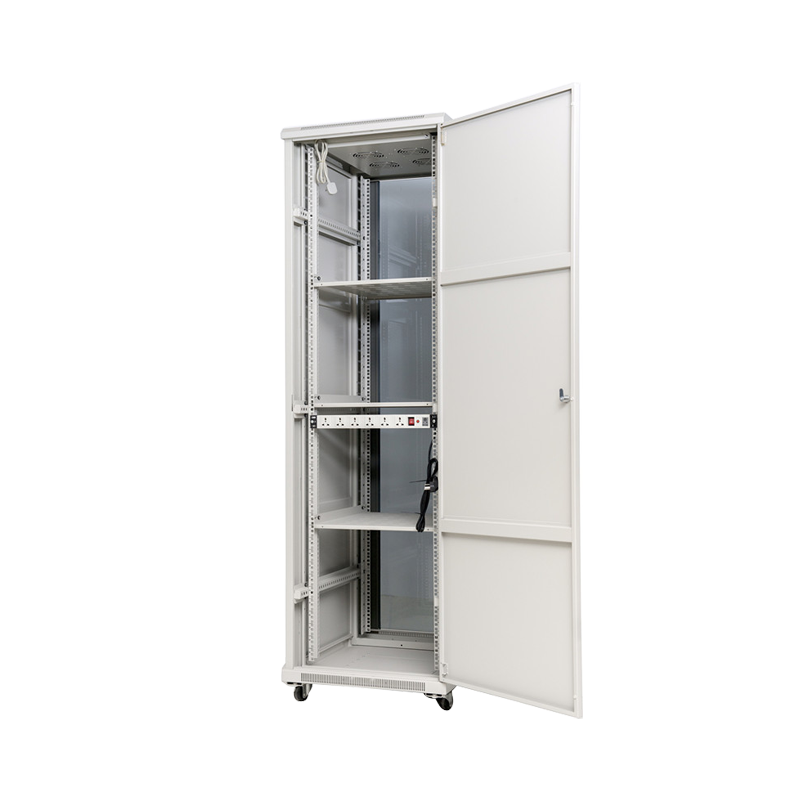

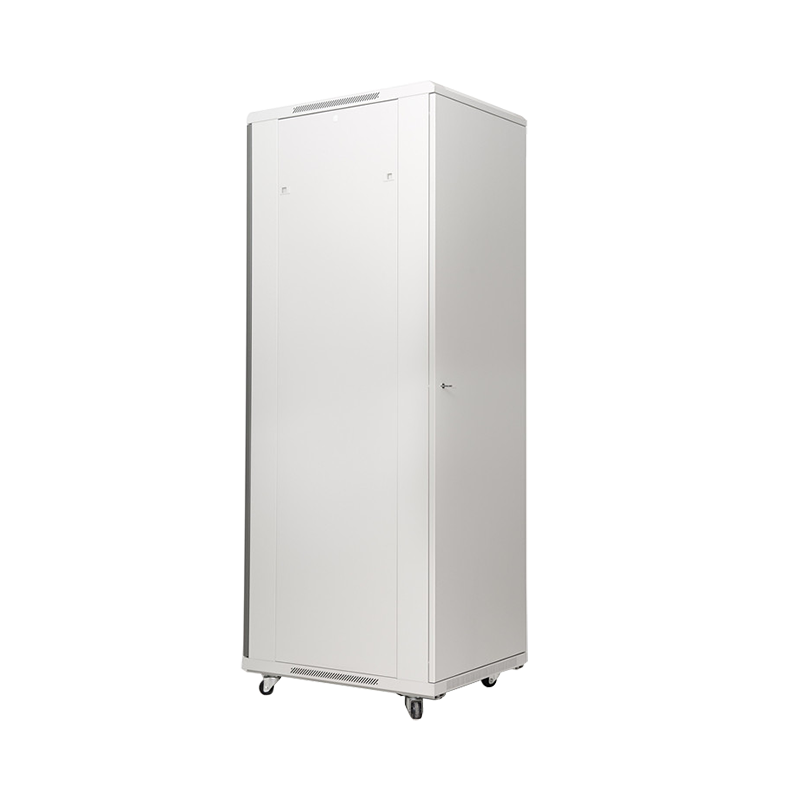

JB600 Standing network rack

Standards:
●Comply with ANSI/EIA RS-310-D、IEC297-2、DIN41494;PART1、DIN41494;PART7, ETSI standard.

Features:
●Exquisite design with precise dimensions and craftsmanship;
●Good compatibility which is available to various servers.Perfect ventilation;
●Side panels can be two panels for each one or one for each one;
●Optional locks for side panels;
●Removable side panels and front/back doors for operation and watching;
●Optional pedestals for fixation,cable routing,ventilation,and rat proof;
●Casters and support feet can be installed simultaneously;
●Adjustable front/back profile rails with scales on;

+86-574-63661713/+86-574-63666728 Contact Us

Description
Customization Process
Feedback

Main material:
●Cold-rolled steel;
●Thickness: mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm.

Protection class:
●IP20

Load capacity:
●Static load: 800KG

Surface treatment:
●Degreasing, pickling, phosphating, laundering, powder coating;

quantity	unit	materials	surface treatment	remarks
1	pc	1.2mm cold-rolled steel	powder coating	---
1	pc	1.2mm cold-rolled steel	powder coating	---
1	pc	1.2mm cold-rolled steel	powder coating	2 fans for 600*600 racks
2	pc	1.2mm cold-rolled steel	powder coating	---
1	pc	5mm/1.2mm 5mm tempered glass/1.2mm cold-rolled steel	powder coating	door type C
1	pc	1.2mm cold-rolled steel	powder coating	door type D
2	pc	1.0mm cold-rolled steel	powder coating	---
6	pc	1.2mm cold-rolled steel	powder coating	---
4	pc	2.0mm cold-rolled steel	powder coating	1.5mm thick steel for less than 22U
3	pc	1.2mm cold-rolled steel	powder coating	1 pc for 18-22U,2 pcs for 27-37U，3 pcs（600 deep） for 42-47U
4	pc	---	---	---
4	pc	---	---	---
40	pc	---	---	20 sets for 18U-22U，30 sets for 27-37U，40 sets for 42-47U
1	pc	---	---	---

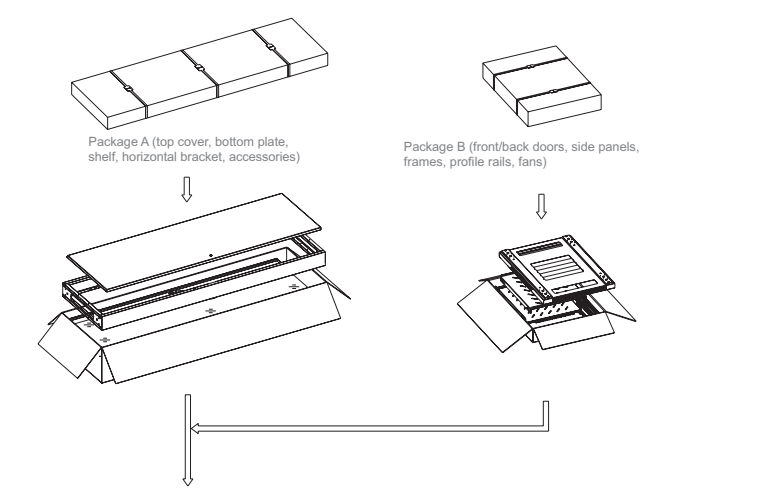

width	depth	height	packing dimensions			volumes	packing dimensions of spare parts			体积volumes
width	depth	height	length	width	height	volumes	package A	package B	package C	体积volumes
(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(m3)	package A	package B	package C	(m3)
600	600	998	615	615	998	0.377	915615320	615615130	———	0.229
600	600	1166	615	615	1176	0.455	1100615320	615615130	———	0.281
600	800	1166	615	815	1176	0.589	1100615320	815615130	———	0.265
600	600	1166	615	615	1176	0.529	1320615320	615615130	———	0.308
600	800	1166	615	815	1176	0.701	1320615320	815615130	———	0.325
600	600	1388	615	615	1398	0.613	1540615320	615615130	———	0.352
600	800	1388	615	815	1398	0.812	1540615320	815615130	———	0.368
600	600	1610	615	615	1620	0.697	1760615320	615615130	———	0.395
600	600	1610	615	615	1620	0.924	1760615320	815615130	———	0.379
600	800	1833	615	815	1843	1.15	1760615320	1015615130	169060730	0.469
600	600	1833	615	615	1843	0.781	1980615320	615615130	———	0.438
600	800	2055	615	815	2065	1.035	1980615320	815615130	———	0.454
600	1000	2055	615	1015	2065	1.289	1980615320	191055730	1015615130	0.546
600	600	2277	615	615	2287	0.865	2205615320	615615130	———	0.482
600	800	2277	615	815	2287	1.146	2205615320	815615130	———	0.498
600	1000	2277	615	1015	2287	1.428	2205615320	213560730	1015615130	0.607

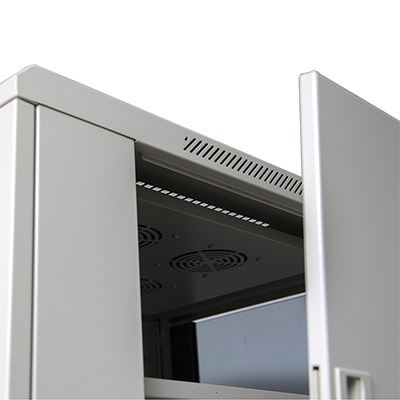

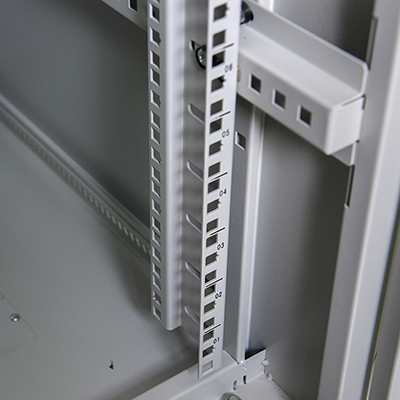

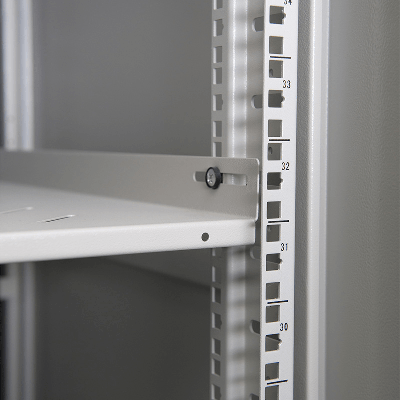

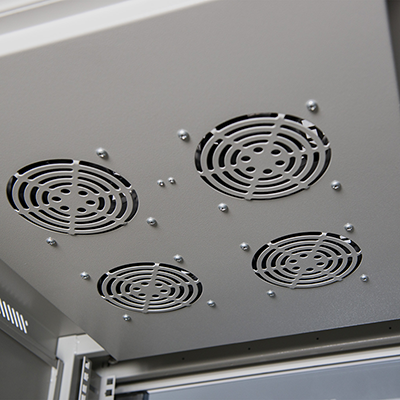

●Top fan	●Side panels	●Earhing screw	●Profile raill with ∪marks on

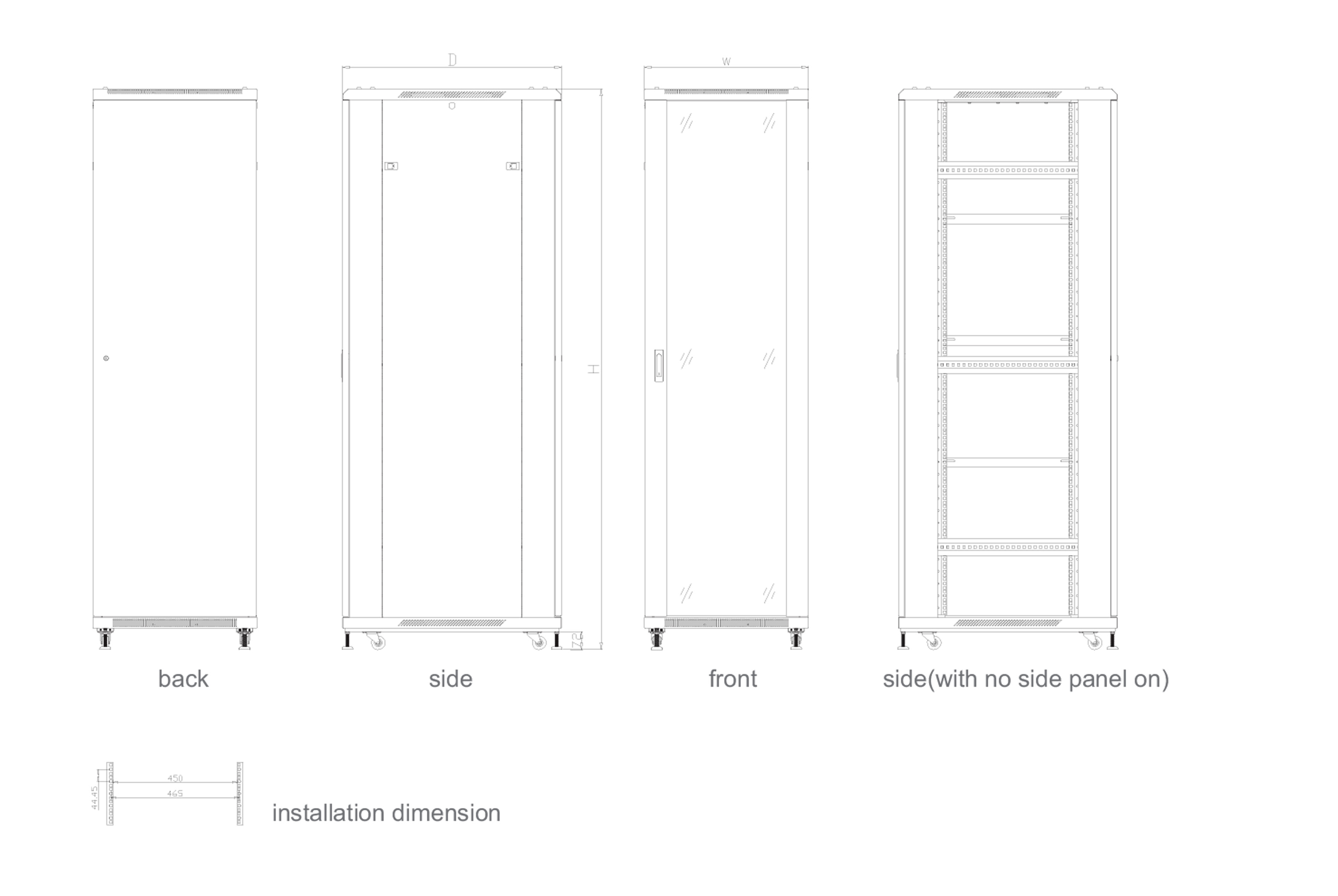

Size：

1. Drawings or specifications	We get the drawings or specifications from customers.
2. Drawings Confirmation	We will draw the 3D drawings according to the customers' 2D drawings or specifications, and send the 3D drawings to customers for confirmation.
3. Quotation	We will quote after getting the customers' confirmation, or quote directly according to customers' 3D drawings.
4. Making Samples(not standard)	Standard products do not need samples, non-standardized samples will be made and sent to the customer for confirmation
5. Mass Producing	We will produce the products after getting the customers' confirmation and orders.
6. Inspection	We will inspect the products by our inspectors or ask the customers to inspect together with us when finished.
7. Shipment	We will ship the goods to the customers after getting the inspection result ok and the customers' confirmation.
