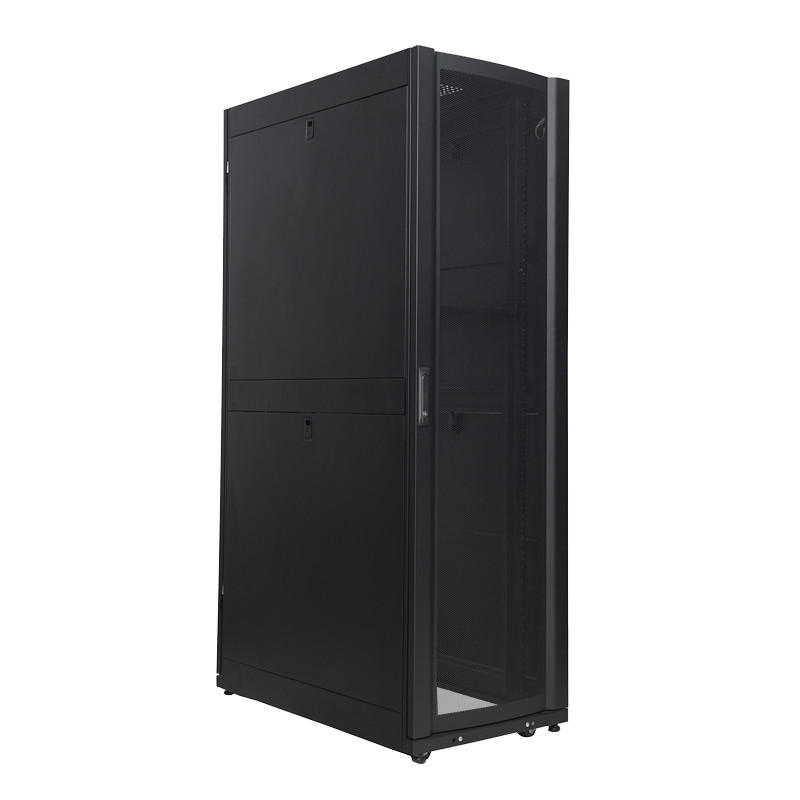

JA Standing server rack

Features:

●Exquisite design with precise dimensions and craftsmanship

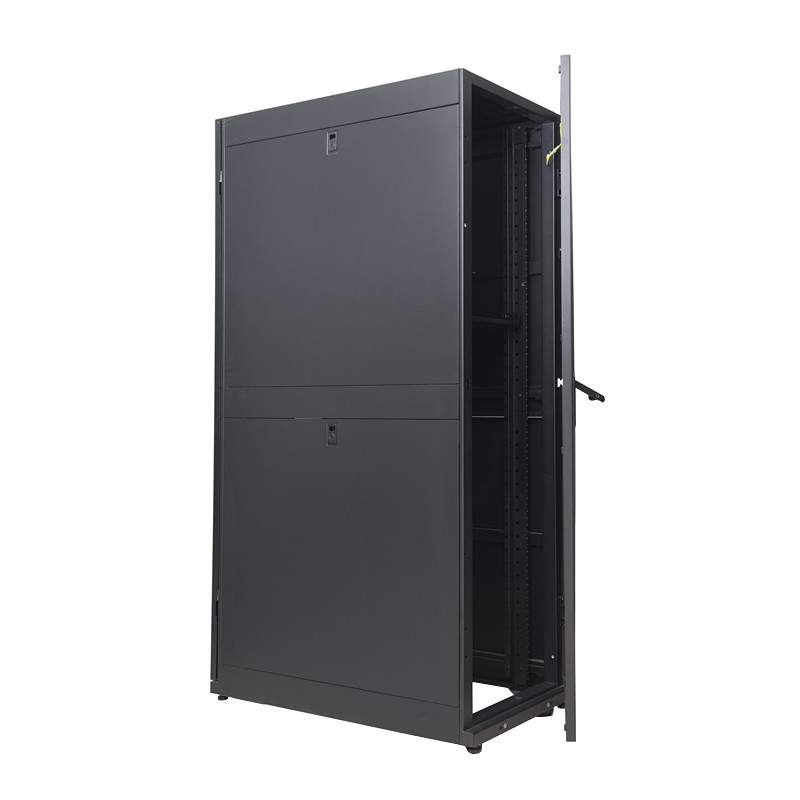

●Two side panels for each side can be separately open with locks,which are easy to operate and maintain
●multifunctional cable routing panels inside
●High-class locks
●Casters and support feet can be installed simultaneously
●Optional bases for fixation,cable routing,ventilation,and rat proof

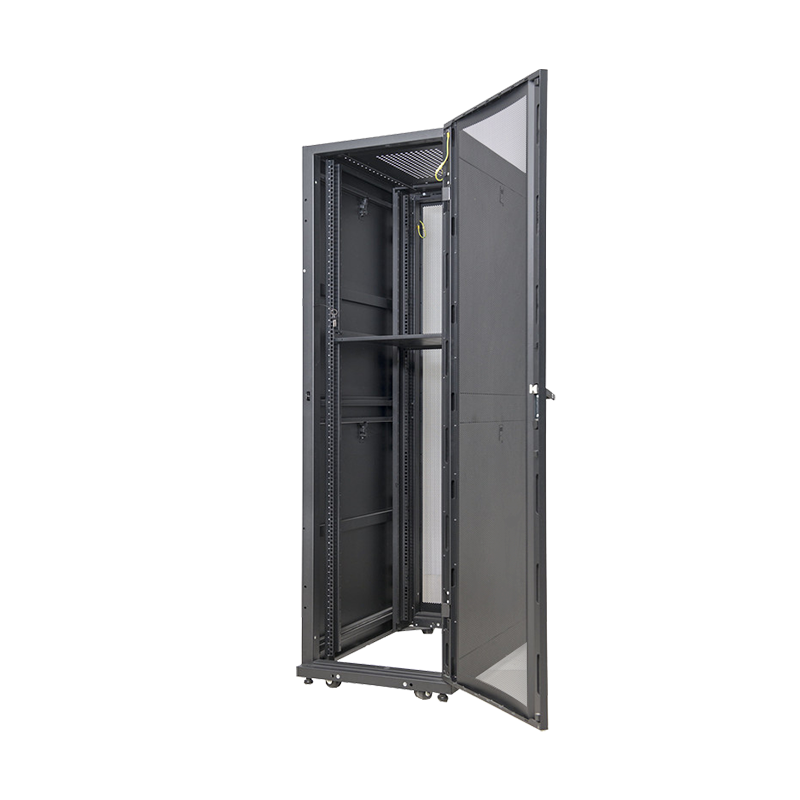

●Curved front screen door & back double screen door enable equipment to ventilate well
●Various optional accessories

+86-574-63661713/+86-574-63666728 Contact Us

Description
Customization Process
Feedback

Main materials:
●cold-rolled steel

Surface treatment:

●Degreasing, pickling,phosphating,laundering,powder coating

Load capacity:

●Static load: 800KG

materials	surface treatment	remarks
1.2mm cold-rolled steel	powder coating	---
1.0mm cold-rolled steel	powder coating	2 pcs for less than 30U
1.2mm cold-rolled steel	powder coating	---
1.2mm cold-rolled steel	powder coating	---
1.2mm cold-rolled steel	powder coating	---
1.5mm cold-rolled steel	powder coating	---
1.5mm cold-rolled steel	powder coating	---
2.0mm cold-rolled steel	powder coating	4 pcs for less than 30U
2.0mm cold-rolled steel	powder coating	---
2.0mm cold-rolled steel	powder coating	---
---	---	---
---	---	---
---	---	30 sets for 27-30U,40 sets for 42-48U

height	packing dimensions			volumes	packing dimensions of spare parts				volumes
height	length	width	height	volumes	package A	package B	package C	package D	volumes
(mm)	(mm)	(mm)	(mm)	(m3)	package A	package B	package C	package D	(m3)
1235	650	950	1386	0.856	1250225615	785110467	1550235150		0.268
1235	650	1150	1386	1.036	1250225615	985110467	1950235150		0.293
1991	650	950	2142	1.323	2006225615	785110845	1950235150		0.419
1991	650	1150	2142	1601	2006225615	985110845	1950235150		0.438
2258	650	950	2410	1.488	2273225615	785110977	2230120145	79095360	0.463
2258	650	1150	2410	1.801	2273225615	985110977	2230120145	99095360	0.49
1991	800	1150	2142	1.971	2006225815	985110845	1960180180	99095360	0.554
2258	800	1150	2410	2.271	2273225815	985110977	2230180180	99095360	0.626

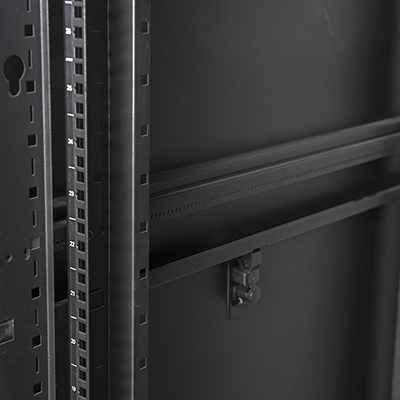

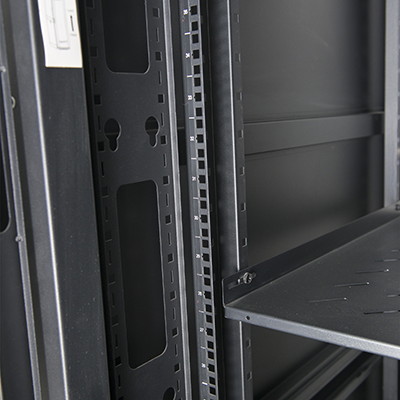

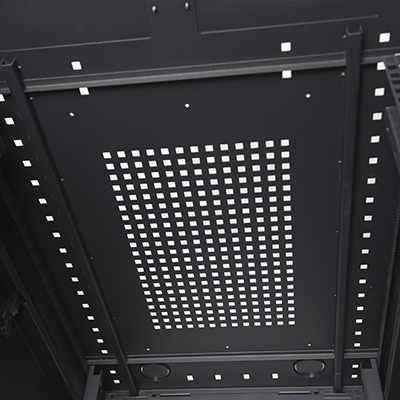

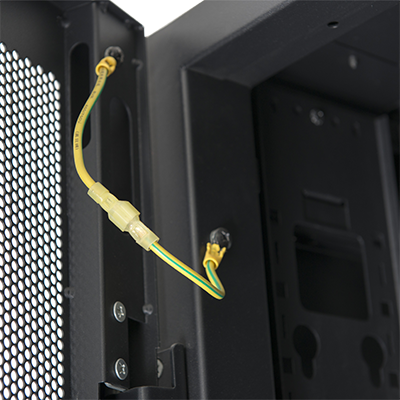

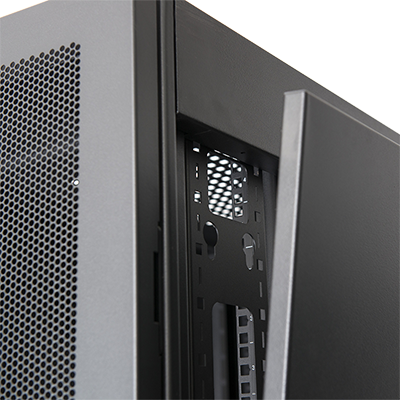

●Multifunctional cable routing panels inside	●Side panel	●With ground wire, Umark on the column	●Adjustable beam	●Top cover

Size：

1. Drawings or specifications	We get the drawings or specifications from customers.
2. Drawings Confirmation	We will draw the 3D drawings according to the customers' 2D drawings or specifications, and send the 3D drawings to customers for confirmation.
3. Quotation	We will quote after getting the customers' confirmation, or quote directly according to customers' 3D drawings.
4. Making Samples(not standard)	Standard products do not need samples, non-standardized samples will be made and sent to the customer for confirmation
5. Mass Producing	We will produce the products after getting the customers' confirmation and orders.
6. Inspection	We will inspect the products by our inspectors or ask the customers to inspect together with us when finished.
7. Shipment	We will ship the goods to the customers after getting the inspection result ok and the customers' confirmation.
