| Standard Configurations | ||||||
| items | names | quantity | unit | materials | surface treatment | |
| 1 | profile rails | 2 | pc | 1.5mm cold-rolled steel | powder coating | |
| 2 | top/bottom covers | 2 | pc | 1.5mm cold-rolled steel | powder coating | |
| 3 | pedestals | 2 | pc | 1.5mm cold-rolled steel | powder coating | |
| 4 | casters | 4 | pc | --- | --- | |
| 5 | cage nuts | 20 | pc | --- | ||
| Specifications | ||||||
| types | capacity | width | depth | height | volumes | packing dimensions of spare parts |
| (mm) | (mm) | (mm) | (m3) | |||
| GR6622☆ | 22U | 600 | 600 | 1185 | 0.4266 | 1400*145*130 |
| GR6632☆ | 32U | 600 | 600 | 1625 | 0.585 | 1550*145*130 |
| GR6637☆ | 37U | 600 | 600 | 1850 | 0.666 | 1780*145*130 |
| GR6642☆ | 42U | 600 | 600 | 2070 | 0.7452 | 1995*145*130 |
| GR6647☆ | 47U | 600 | 600 | 2295 | 0.8262 | 2220*145*130 |
 |
 |
 |

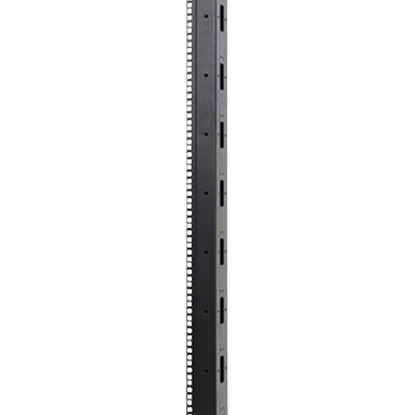

| ●adjustable profile rail | ●adjustable profile rail | ●adjustable profile rail |
| 1. Drawings or specifications | We get the drawings or specifications from customers. |
| 2. Drawings Confirmation | We will draw the 3D drawings according to the customers' 2D drawings or specifications, and send the 3D drawings to customers for confirmation. |
| 3. Quotation | We will quote after getting the customers' confirmation, or quote directly according to customers' 3D drawings. |
| 4. Making Samples(not standard) | Standard products do not need samples, non-standardized samples will be made and sent to the customer for confirmation |
| 5. Mass Producing | We will produce the products after getting the customers' confirmation and orders. |
| 6. Inspection | We will inspect the products by our inspectors or ask the customers to inspect together with us when finished. |
| 7. Shipment | We will ship the goods to the customers after getting the inspection result ok and the customers' confirmation. |
9 outlets of IEC C13Material:aluminium alloy shell,PC panel1.5 U,L 483.0mm*W 66.0mm*H 44.0mm Work en...
See Details
10 outlets of IEC C13+1 switch+1 Indicator light .Material:aluminium alloy shell,PC panel1.5 U,L 583...
See Details
8 outlets of IEC C13+1 switchMaterial:aluminium alloy shell,PC panel1.5 U,L 483.0mm*W 66.0mm*H 44.0m...
See Details
12 outlets of IEC C13+1 switchMaterial:aluminium alloy shell,PC panel1 U,L 650.0mm*W 44.0mm*H 44.0mm...
See Details
8 outlets of IEC C13+2 outlets of IEC C19+1 current/voltage displayMaterial:aluminium alloy shell,PC...
See Details
8 outlets of IEC C19+1 overload protector +1 indicator lightMaterial:aluminium alloy shell,PC panel1...
See Details
8 outlets of IEC C19Material:aluminium alloy shell,PC panel1 U,L 483.0mm*W 44.0mm*H 44.0mmWork envir...
See Details
3 outlets of IEC C19+3 outlets of IEC C13+3 multiple outlets+9 overload protector+9 indicatorsMateri...
See Details
6 American outlets+1 double break switch+1 overload protectorMaterial:iron shell, iron panel1 U,L 48...
See Details
8 American outlets +1 switchMaterial:aluminium alloy shell,PC panel1 U,L 483.0mm*W 44.0mm*H 44.0mmWo...
See Details
